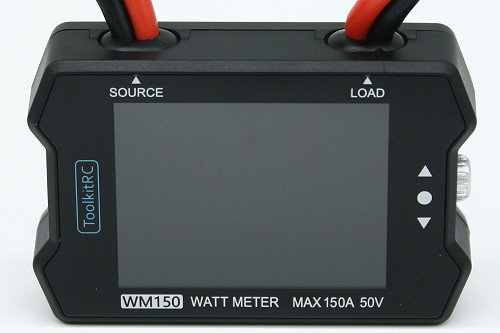

ToolkitRC WM150 150A, 50V Watt Meter
Power Analyzer, LCD Display, Power Voltage Current Tester PWM Output

Easy to Use

• Connect 1-50V input. When I/P voltage is lower than 6V, the units needs to be powered using a USB 5V to provide power

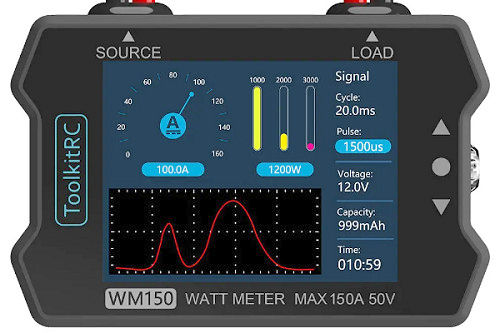

• After powering on, the LCD screen displays the logo for approx. 2 seconds



Features

• Brand: ToolkitRC
• Item: WM150 Watt Meter
• Input Voltage: 1-50V
• Current(Max): 150A (precision:10mA)
• USB: 5.0V@1A ( USB3.0 firmware update)
• Output: PWM 1000-2000us@50Hz
• Can be used to control an ESC or Servo
• Shows Real time Amps, Watts and Voltage.
• Shows Max Amps and Watts
• Shows energy uses in mAh
• Shows elapsed time
• Shows Signal output in µS
• Display: TFT 2.4" LCD Screen (320*240 resolution)
• Product Size: 80mm x 54mm x 23mm Approx.
• Packing Size: 87mm x 87mm x 28mm Approx.
• Net Weight (Approx): 120g
• Gross Weight (Approx): 140g
• ToolkitRC WM150 is a Watt Meter, which is capable to test voltage, power, current data of the electric equipment, like servo, ESC, battery, etc.
• 1-50V Input, the max current is 150A, accurate  to 10mA
• Support PWM signal, 1us precision, the pulse width is changeable by adjusting the button
• USB firmware is easily updateable
