Panic Kit (JPDAA1000)

  Panic Kit

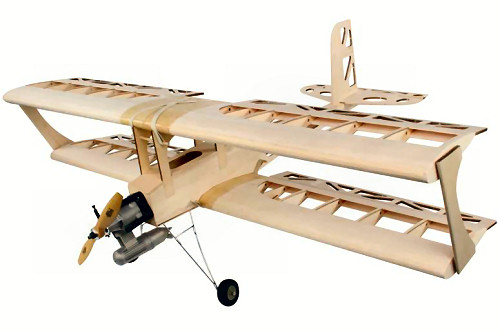

An example of a finished kit before covering

  Panic Kit

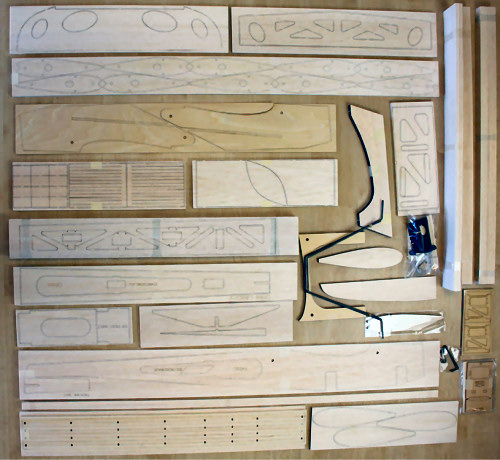

What's in the Box

  Panic Kit

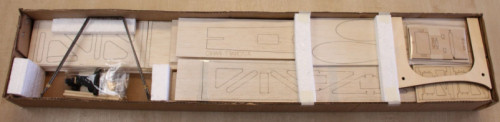

What's in the Box

  Panic Kit
An Example of a completed kit



Share on your Facebook Page



Panic Kit (JPDAA1000)

A true all-time classic Traditional ‘quick-build’ kit Lightweight, high quality balsa and plywood construction Laser-cut parts including ribs, lightening holes and wing sheeting cut to size Simplified interlocking wing construction One-piece pre-lightened tail surfaces Pre-formed wire undercarriage Suits a wide range of engine sizes Easily converted for electric power

Included in the Box

  • Laser-cut balsa and plywood parts
  • Wire undercarriage parts ready for soldering
  • Saddle clamps and screws for undercarriage
  • 8x Wing tip 19mm press studs
  • 1x Engine mount
  • 1x Full instruction manual

Required to Complete

  • 1x 61 - 90 Glow engine or electric equivalent
  • 23x Polyester hinges
  • 1x Double control horn (rudder)
  • 3x Single control horns (ailerons, elevator)
  • Ball links and rod for upper aileron connection
  • Standard size servos, 5 minimum.
  • Closed loop system for rudder
  • Elevator push rod
  • Aileron push rods
  • Throttle push rod
  • Covering (recommended Oracover)
  • Fuel tank (8oz Minimum)
  • 2x 2 1/2in Wheels
  • 4x Wheel collets 10SWG
  • 2 x Glass fibre bandages for joining the wings

Panic Kit (JPDAA1000)



Wingspan:

1220mm (48.03")

Flying Weight:

2400g (5.3lbs)

Battery:

6S 4500mAh 40C Li-Po (Sold Separately)

Receiver:

4-5 Channel (Sold Separately)

Please click here to download the manual

Please Note: Due to size and weight limitations we are unable to ship kits outside of the UK



Please Note Due to having our knuckles severely rapped by the Post Office we can no longer send any kind of battery via the post. Any order containing batteries will have to be sent via courier and this will incur a minimum of a £9.49 delivery and packaging charge.
We can not deliver batteries outside of mainland UK


The following setup is very powerful and gives nearly 2:1 power to weight ratio!
which means it has plenty of power to punch out of a prop hang. We highly recommend the JXF prop as it is more efficient then an APC electric equivalent as well as being lighter which puts less gyroscopic stress on the motor when doing 3D and aerobatic flying.

We recommend mounting the motor as in the following photo using the stand offs and the collet style prop driver. Screws need to be purchased separately.

  Panic Kit

Part Number Description Price Quantity
Panic Kit Panic Kit
(RRP £109.99 - Save £11.00)
£98.99
PO-5065-420 Brushless Outrunner Motor including rear
motor mount and bolt on prop driver
£75.50
PP-TESC60AU 60A Brushless Electronic Speed Controller £44.95
PP-UBEC6A For safety reasons we recommend that you use a
6A UBEC to power your receiver and servos
£14.99
JXF 16x8 High Performance JXF wooden prop £9.21
4x STAND-OFF-100MM 100mm long motor stand offs £6.99
PP-PDRV80-80 Collet Prop Driver - 8.0mm Shaft/8.0mm Prop £5.95
4x XL-38HMB 4x New Power XL-38HMB Servos
Standard size, metal geared, ball raced 9Kg
£59.48
PPL-40C6S-3300 High Performance 6S, 40C, 3300mAh LiPo Battery (Recommended) £68.99
