Flair Harvard

Brushless Electric Setup for the Flair Harvard

Manufacturer	Flair Products
Model	Harvard / T6 Texan
Wingspan	66" (1676mm)
Weight	5.93lbs (2.69Kg)

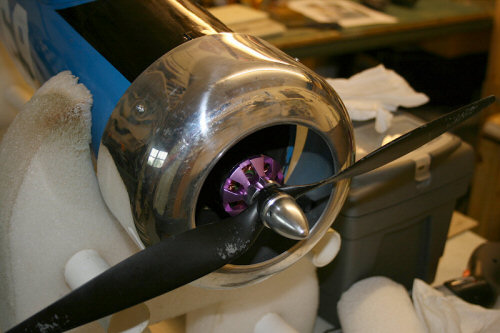

Motor	PO-3547-800
Prop	JXF 13" x 6"
Battery	4S 3,700mAh Lithium Polymer Battery
ESC	4M-HESC60A35V2 Plus BEC 4M-UBEC5A
Volts under Load	14.8V
Amps	37A
Watts	548W
RPM	8,600RPM
Thrust	6.24lbs/2830g

This motor is soooooo smooth, quiet and powerfull. It has enough power to do massive loops

A 10 minute flight of gentle aerobatics and slow cruzing, low 'n' slow passes takes around 2,600mAh from the 3,700mAh packs.

Click here for a video of the Harvard in action
