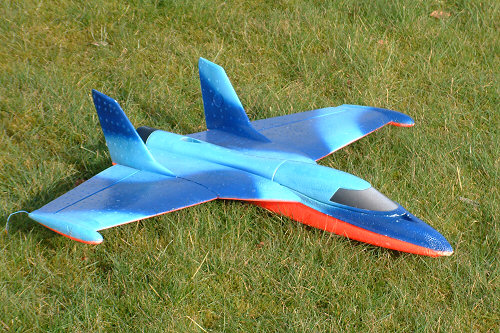

Multiplex FunJet

Brushless Electric Setup for the Multiplex Funjet

Manufacturer	Multiplex
Model	FunJet
Wingspan	800mm / 31.3"
Weight	625g / 1.38lbs

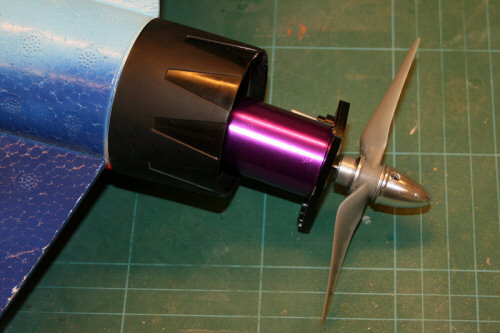

Motor	Purple Power PI-2847-2200 plus Prop Adapter PP-PDRV40-50
Prop	APCE 6" x 4"
Battery	3S 2,200mAh Lithium Polymer (11.1V)
ESC	4M-HESC30A
Volts under Load	9.77V
Amps	21.2A
Watts	207W
RPM	18,700

A great model, flys much better then the older PicoJet, MicroJet and TwinJet.

The FunJet flys much better inverted then all the others, glides better and is generally a much better aircraft.

Click here for a video of the FunJet in action
