Customer Photos


Click here to go backwardsClick here to view the next example

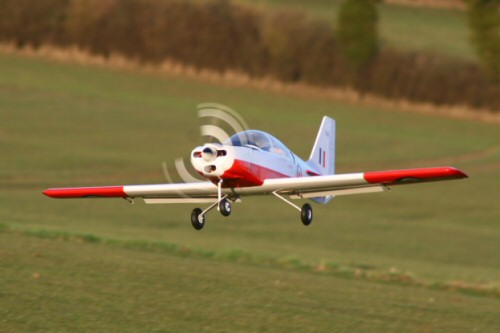

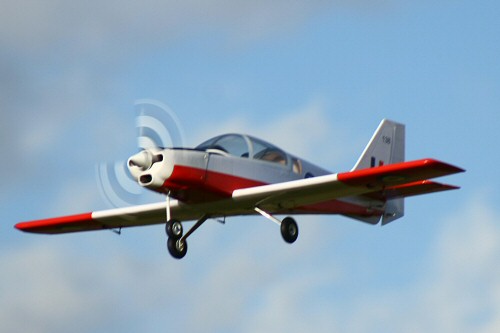

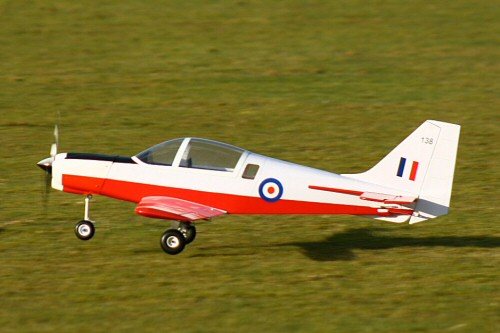

VMAR Bulldog

Brushless Electric Setup for the VMAR Bulldog

Brushless Electric Setup for the VMAR Bulldog

Brushless Electric Setup for the VMAR Bulldog

Manufacturer
VMAR
Model
Scotish Avaition Bulldog
Wingspan
1570mm / 62"
Flying Weight
3.72Kg / 8.2lbs
Motor
4-Max PO-5065-420
Prop
JXF 15" x 10"
Battery
6S 5,000mAh LiPo (22.2V)
ESC
4M-HESC80AV2
Volts under Load
19.47
Amps
44.9
Watts
875
RPM
6750

"The VMAR Bulldog was one of the easiest IC to Electric conversions I have ever built.
It has stacks of power and 15 minute flights are achievable"

The plane could be approx 1lb lighter by using a slightly smaller motor and a 5S 4,100mAh pack, but customer wanted to use his existing 6S batteries
