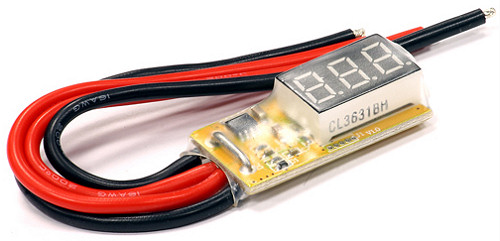

G.T. Power Mini Voltage and Current Meter 30A


G.T. Power Mini Voltage and Current Meter

Share on your Facebook Page



This useful little gadget is used to measure and display voltage and current. The display cycles automatically on connection to the power source.

May be connected in series (in-line) between your flight pack (eg. 2-6S LiPo) and ESC to determine whether the pack is holding up under load and also to monitor the current drawn by the power set up to a maximum of 30A.

Features

  • 3-digit LED display
  • Soft-sheathed silicone cable

Specifications

  • Input voltage: 5 - 25V
  • Maximum working current: 30A
  • Voltage precision range: +/- 0.1V
  • Current precision range: +/- 0.1A
  • Weight: 18g (Approx.)

Please click here to download the user manual

Part Number Description
GT-MINI-V&I-METER G.T. Mini Voltage and Current Meter No Longer Available
