HiTEC Optima 6 AFHSS Rx With Batt. Telemetry (2226610)
No Longer Available

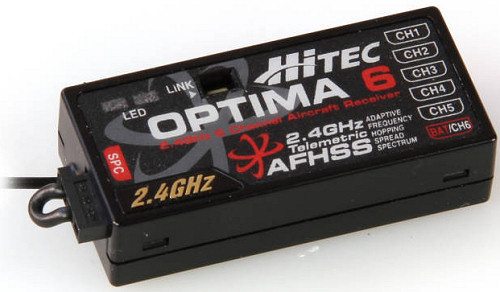

HiTEC Optima 6 Receiver

Advanced 6 Channel Aircraft Receiver

HiTEC's dependable, high performance, full range, 6-channel, 2.4GHz AFHSS receiver with Rx low battery telemetry built in as standard

Key Features

  • Full Range
  • 6 Channel Receiver
  • Battery telemetry including a low voltage warning
  • Boosted Omni-Directional Antenna (BODA) system
  • Fail-safe / hold function
  • Reduced output range-check option.

Product Description

The Optima 6 is one of Hitecs smallest 2.4GHz AFHSS receivers. Built on the same foundation as the Optima 7 without the full telemetry features
The Optima 6 is 20% smaller and weighs slightly over a half an ounce making it perfect for smaller aircraft.
Hitecs Adaptive Frequency Hopping Spread Spectrum (AFHSS) technology utilises the exclusive SmartScan system to ensure a rock solid, interference free connection between the transmitter and receiver. When selected SmartScan scans the 2.4GHz spectrum to find the cleanest channels in which to operate therefore providing interference free operation even in the most crowded environments.

Optima receivers also feature Hitecs Boosted Omni Directional Antenna (BODA) system, independent testing having proven that the single BODA antenna system in the 6- and 7-channel systems is equal to, or better than, the dual antenna systems of competitors.

Specification

Length 46.7mm (Approx.)
Width 21.3mm (Approx.)
Height 11.4mm (Approx.)
Weight 15.3g (Approx.)



Click here to download the manual
