HTRC
680AC (Dual Input), 80W
Featured Digital Intelligent Multifunctional
Balancing Charger/Discharger/Cycler
LiPo, Li-lo, Li-Hv, Li-Fe (A123M1),
Ni-Cd, Ni-MH, Pb (Lead Acid)
Smart Batteries (I / II / III)
Internal Resistance Testing
New Lower Price
The HTRC 680AC charger is a simple yet powerful
dual input multifunctional charger with built in LiPo balancing
(JST-XH) for up to 6S Lithium batteries.
It is packed with
features that exceeds
many higher cost units.
Primarily designed
for Lithium Polymer
(LiPo, Li-Poly) batteries,
it can also charge
Li-Ion, Li-Fe (A123M1),
Ni-Cd, Ni-MH, and
Pb (lead acid) batteries.
Features
- Capacity Limit
- Maximum safety
- Temperature monitoring
- Input power monitoring
- Easy to program
buttons
- 5 battery memory
- Individual cell
monitoring
- 2-Line Back lit
LCD display
- Built in Balancer
to 6S packs
- Cycle charging/discharging
- Includes"FAST"
&"STORAGE"
Li-xx programs
Product Details
- Output 80W
- Discharge 10W
- Balancing current
350mAh/cell
- Operating input
voltage : 11 - 18V
DC or 100-240V AC
- Ni-Cad / Ni-MH
: 1 - 15 Cells
- Li-Ion / Li-Po
/ Li-Fe / Li-Hv : 1 - 6
Series
- Charge current : 0.1 - 6.0A
- Discharging current:
0.1 - 2.0A
- PB / Lead Acid
: 2 - 20V
- Built in Cell
Ballancer : Up to
6S (series) Li-Po
(JST-XH connectors)
- No. of Cycles
: Up to 5 Cycles
- Weight : 433g
- Dimensions : 135mm
x 112mm x 61mm

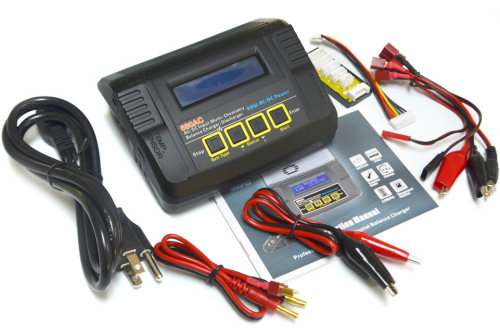

Includes (see above photo)
1 x Charger
1 x 4mm banana connectors to XT60 and Dean style connectors
1 x XT60 to mini croc clips(DC input cable)
1 x JST-XH balance adapter board
1 x Mains lead with UK plug
1 x Manual
Please click here to download
the HTRC 680AC manual
|
