HTRC
H150ACDC (Dual Input & Dual Output), 300W Fully Featured Digital
Intelligent Multifunctional Balancing Charger/Discharger/Cycler
LiPo, Li-lo, Li-Hv, Li-Fe (A123M1),
Ni-Cd, Ni-MH, Pb (Lead Acid)
Smart Batteries (I / II / III)
Internal Resistance Testing
Special Price
Accessories supplied with charger
UK 3 Pin Plug supplied
The HTRC H150ACDC charger is a simple yet powerful
dual input and Dual Output multifunctional charger with built in
LiPxx balancing (JST-XH) for up to 6S Lithium batteries.
It is packed with
features that exceeds
many higher cost units.
Primarily designed
for Lithium Polymer
(LiPo, Li-Poly) batteries,
it can also charge
Li-Ion, Li-Hv, Li-Fe (A123M1),
Ni-Cd, Ni-MH,
Smart Batteries (I/II/III) and Pb (lead acid) batteries.
Features
- Capacity Limit
- Maximum safety
- Temperature monitoring (cable not supplied)
- Input power monitoring
- Easy to program
buttons
- 20 battery memory
- Individual cell
monitoring (voltage and IR)
- 2-Line Back lit
1602 LCD displays
- Built in Balancer
to 6S packs
- Cycle charging/discharging (Ni-Cd, Ni-MH)
- Includes"CHARGE", BALANCE","FAST",
"DISCHARGE"
&"STORAGE"
Li-xx programs
Product Details
- Output 300W (2x 150W)
- Discharge 40W (2x 20W)
- Balancing current
500mAh/cell

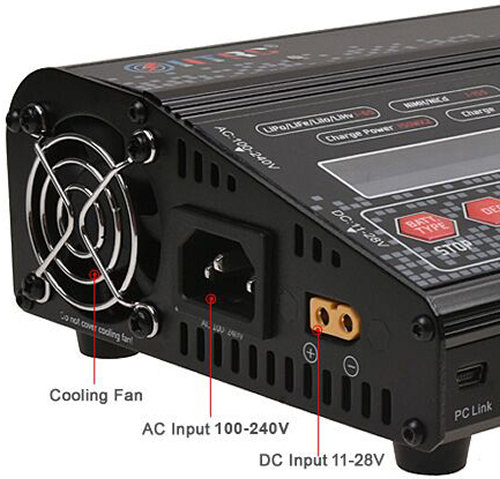

- Operating input
voltage : 11 - 28V
DC or 100-240V AC
- Ni-Cad / Ni-MH
: 1 - 15 Cells
- Li-Ion / Li-Po
/ Li-Fe / Li-Hv : 1 - 6
Series
- PB / Lead Acid : 2 - 20V
- Smart Battery: (I / II / III) 5-25V,0.1-10A
- Charge current : 0.1 - 12.0A
- Discharging current:
0.1 - 5.0A
- Built in Cell
Ballancer : Up to
6S (series) Li-Po
(JST-XH connectors)
- Weight : 1072g
- Dimensions : L195 x W143 x H70mm

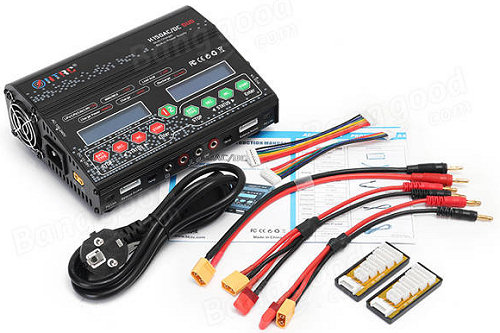

Includes (see above photo)
1 x Charger
2 x 4mm banana connectors to XT60 and Dean style connectors
2 x XT60 to mini croc clips(DC input cable)
2 x JST-XH balance adapter board
1 x Mains lead with UK plug
1 x Manual
Please click here to download
the HTRC H150ACDC manual
|
