HTRC T150 Dual Input 150W Full Colour Touch Screen, Fully Featured Digital Intelligent Multifunctional Balancing, Charger/Discharger/Cycler
LiPo, Li-lo, Li-Hv, Li-Fe (A123M1), Ni-Cd, Ni-MH,
Pb (Lead Acid) Smart Batteries (I / II / III)
Internal Resistance Testing
Special introductory Price

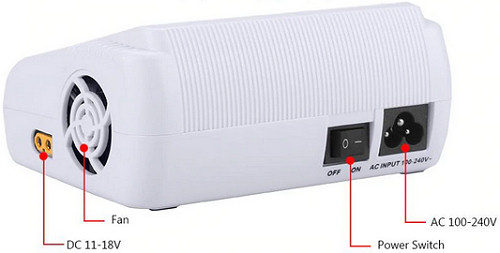

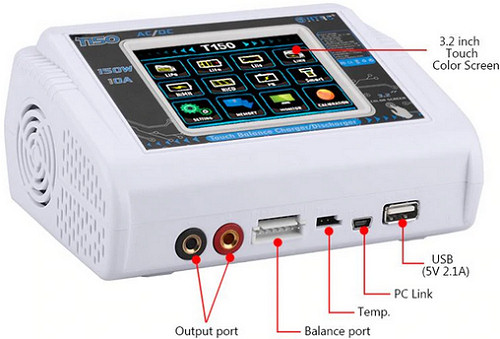

HTRC T150 Dual Input  Charger

HTRC T150 Dual Input  Charger

Supplied with UK 3 Pin Plug

Share on your Facebook Page



The HTRC T150 charger is a simple yet powerful Dual Input Full Colour Touch Screen multifunctional charger with built in LiPo balancing (JST-XH) for up to 6S Lithium batteries.
It is packed with features that exceeds many higher cost units.
Primarily designed for Lithium Polymer (LiPo, Li-Poly) batteries, it can also charge Li-Hv, Li-Ion, Li-Fe (A123M1), Ni-Cd, Ni-MH, Pb (lead acid) and Smart (I,II,III) batteries.

Features

  • Full Colour 3.2 Inch Touch Screen
  • Capacity Limit
  • Maximum safety
  • Temperature monitoring
  • Input power monitoring
  • Easy to program buttons
  • 20 battery memory
  • Individual cell monitoring
  • 2-Line Back lit LCD display
  • Built in Balancer to 6S packs
  • Cycle charging/discharging
  • Includes"FAST" &"STORAGE" Li-xx programs

Product Details

  • Output 150W (both AC and DC)
  • Discharge 10W
  • Balancing current 500mAh/cell
  • Operating input voltage : 11 - 18V DC or 100-240V AC
  • Ni-Cad / Ni-MH : 1 - 15 Cells
  • Li-Ion / Li-Po / Li-Fe / Li-Hv : 1 - 6 Series
  • Charge current : 0.1 - 10.0A
  • Discharging current: 0.1 - 2.0A
  • PB / Lead Acid : 2 - 20V
  • Built in Cell Balancer : Up to 6S (series) Li-Po (JST-XH connectors)
  • No. of Cycles : Up to 5 Cycles
  • Weight : 480g
  • Dimensions : 145mm x 105mm x 64mm

Includes (see above photo)

1 x Charger
1 x 4mm banana connectors to XT60 and Dean style connectors
1 x XT60 to mini croc clips (DC input cable)
1 x JST-XH balance adapter board
1 x Mains lead with UK plug
1 x Manual

Please click here to download the HTRC T150 manual

Part Number Description Price Quantity
T150-CHARGER HTRC T150 Charger
  No Longer Available
PP-BALBOARD-JST-XH 4Max
2-6S LiPo Balancer Board
2-6S LiPo Balance Board
JST-XH Connector
£2.99

4Max

PP-CHGLEAD-A
Multi way charging lead. 4mm banana plugs to connect to your charger. Plus JST/BEC, Deans Style, Futaba and JR Tx charging plugs a female servo plug to charge your 4/5 cell NiMh pack, plus a spare pair of leads. £7.49
