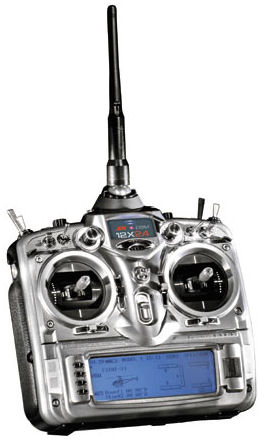

JR DSX12 2.4GHz Transmitter

JR Propo’s Latest Premier 12 Channel Integrated 2.4GHz Radio Control System.

• Integrated 2.4 GHz system - no module required.
• Includes DSM2 Advantages
• MacGregor/JR version, only CE legal version
• New dual bearing stick design
• Made by JR in Japan
• 50 Model Memory
• 12 Channels
• 3 Model Types - Aeroplane, Glider & Helicopter
• Available in Mode 1 and 2
• High Definition LCD Display with Backlight
• New 2048 Resolution

Supplied with a JR RD1221 twelve-channel receiver, three EA101 remote receivers, heavy-duty switch harness, genuine JR 2000 mAH Ni-Mh transmitter and 1500mAH receiver battery packs, Metal Transmitter Case, MacGregor charger and a Bind Plug.

Basic Function

• Servo reverse*
• Left & right trim*
• D/R & EXP. -> LIN/EXP, EXP/LIN & VTR50-90%*
• Sub. Trim*
• Analog throttle trim*
• Servo speed: 2 (F.M.)
• Advanced digital trim upto 200 steps*
• Double BB stick tension adjustable*
• Program mix : 8 types (in 8 types, 5 types can be made curve mix.) *
• Trim step/trim type*
• DSC/USB jack*
• Model memory: 50*
• Model name: 16 letters*
• Data reset*
• Fail-safe*
• Alarm & timer function*
• Servo monitor with its test*
• Trainer system*
• Type changeable: up to 3 types*
• Data transfer (TX<=>TX) (TX<=>PC) *
• Device select*
• LCD with backlight**
• Snap roll on-off at D.T. lever on Stick unit. *
• Program mixing monitor*
• (*each F.M. = each flight mode)

Helicopter Function

• Flight mode: 6
• Throttle curve: max. 5 multi-point with EXP.
• Pitch curve: max. 6 multi-point with EXP.
• Tail curve: 5 with EXP.
• Throttle hold: auto-cut
• Gyro set-up: max. 6/tail lock gain (max. 6 at G7000T)
• Dual-pitch MIX.
• Swash type: 6 (at 140°)
• Governor set-up: each F.M.
• 3D-E-Ring is inside of Swash MIX.

Aeroplane Function

• Flight mode: 5
• Throttle curve: each F.M
• Pitch-curve: each F.M. with EXP.
• Throttle hold
• Gyro sensitivity adjust: 2
• AILE->RUDD MIX. : with differential
• ELEV.->FLAP MIX
• RUDD->AILE/ELEV. MIX.
• AILE->FLAP MIX.
• Flap system
• Snap roll: 5 (individual)
• Wing type set-up: with differential
• Sub. Channel at Wing type dual is selectable at full Governor set-up: each F.M.
• Servo balance function: at only dual servo set-up

Glider Function

• Flight mode: max. 5
• ELEV->FLAP MIX: each F.M
• AILE->RUDD MIX: each F.M
• AILE->FLAP MIX: each F.M.
• RUDD->SPOI MIX: each F.M.
• Flaperon MIX: each F.M./with Flap lever off-set
• Flap rate: each F.M.
• Differential: each F.M.
• Flight mode delay
• Motor hold
• Wing type: main wing 6 servo
• Brake system

Supplied with a JR RD1221 twelve-channel receiver, three EA101 remote receivers, heavy-duty switch harness, genuine JR 2000 mAH Ni-Mh transmitter and 1500mAH receiver battery packs, Metal Transmitter Case, MacGregor charger and a Bind Plug.

Click here to download the DSX12 Manual 40.2MB

Click here to take the video tour!
