PP-DESC70A
70A OPTO ESC
(Brushless Electronic Speed Controller)
|
|
Electronic Speed
Controller
Please Click for
a larger image |

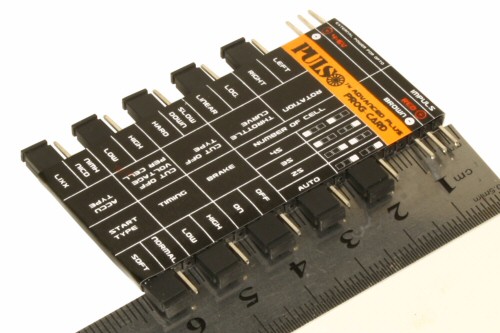

Programming
Card
Please Click for
a larger image |
|
Specifications
| Constant
Current |
70A |
| Burst Current |
85A for 10 Seconds |
| Motor Input
Voltage Range
|
2-6 LiPo (5.6
- 25.2V DC) |
| BEC Voltage
Range |
OPTO - No
BEC See our seperate
UBEC's |
| BEC Output |
OPTO - No BEC
|
| Weight (g) |
45g |
| Size (mm) |
52mm x 25mm
x 12mm |
| Connectors Supplied |
3x 3.5mm Male,
3x 3.5mm Female
+ Heatshrink |
Features
-
Easy setting / Easy operation.
-
Safe start-up – The motor will not start
regardless of the throttle position.
-
Automatic power cut-off – When the motor
is stopped or when the radio signal has been lost for more the
3 seconds.
-
High rate of switching (PWM Pulse Width Modulation)
8 kHz
-
Over voltage protected. The ESC will not start
if the voltage is greater then 18V (except for the OPTO versions)
-
Low voltage cut-off 3.0V/2.7V (selectable) for
Lithium-ion/Lithium Polymer or 0.9V/0.7V (selectable) for Ni-Cd/Ni-Mh
batteries.
-
Selectable timing modes
• Low Timing – Providing high efficiency for 2,4
and 6 pole motors
• High Timing – For high speed motors (6 poles or
more) and outrunner motors.
-
Selectable cut offs – hard cut off or
soft cut off
|
User Instructions
|
|
