MaxPro X6-PLUS (150W) Fully Featured Digital Intelligent Multifunctional Balancing Charger/Discharger/Cycler
LiPo, Li-Ion, Li-Mn, LiFePO4(A123M1),
Ni-Cd, Ni-MH, Pb (Lead Acid)

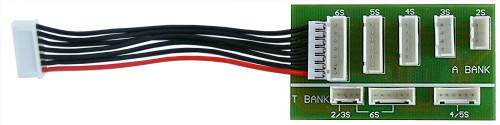

The plug on the left is a 6S JST-XH plug.
The set of sockets above the white line (A Bank) are JST-XH.
The set of sockets below the white line (T Bank) are 4-Max/ Thunder Power/FlightPower.

The Data Port is used for the temperature sensor when charging
or for testing servos

The MaxPro X6-PLUS charger is a simple yet powerful multifunctional charger with built in LiPo balancing (JST-XH and 4-Max/TP/FP) for up to 6S.
It is packed with features that exceeds many higher cost units.
Primarily designed for Lithium Polymer (LiPo, Li-Poly) batteries, it can also charge Li-Ion, Li-Fe (A123M1), Ni-Cd, Ni-MH, and Pb (lead acid) batteries.

Features

• Capacity Limit
• Data Store/Load
• Maximum safety
• Temperature monitoring
• Input power monitoring
• Easy to program buttons
• Individual cell monitoring
• 2-Line Back lit LCD display
• Balance board accpets TP/FP/4-Max and JST-XH to 6S packs
• Cycle charging/discharging
• Includes"NORMAL", "FAST", "BALANCE", "CYCLE", "STORAGE" & "MONITOR"Li-xx programs
• Charging output 150W
• Max discharge power : 15W
• Balance discharge current : 400mA
• Operating input voltage : 11 - 15V DC (15A at max charge rate)
• Reverse polarity protected on input and output
• Charge current : 0.1 - 8.0A (0.1A steps)
• Discharge current : 0.1 - 3.0A (0.1A steps)
• Automatic cooling fan
• Built-in servo tester. Linear, Speed, Deadband of servos can all be tested.
• Firmware upgradable via USB port. The charge/discharge data can be recorded & analyzed by PC monitor software & Battery analyser software.
• Weight : 450g
• Dimensions : 145mm x 100mm x 40mm

Supported Batteries

• 1-6 cells Li-Po, Li-Ion, Li-Mn (2-6 cells in balance charge)
• 1-8 cells LiFePO4 (2-6 cells in balance charge)
• 1-18 cells NiMH, NiCd
• 1-12 cells(2-24V) Pb(SLA)
