4-Max 9.4g Digital Metal Geared
Ballraced Wing Servo, 1.4Kg/1.9Kg Pull
Only 8mm Thick!
From £9.89!

4-Max  9.4g Analog Servo

All Servos come with a full set of arms and accessories

Share on your Facebook Page

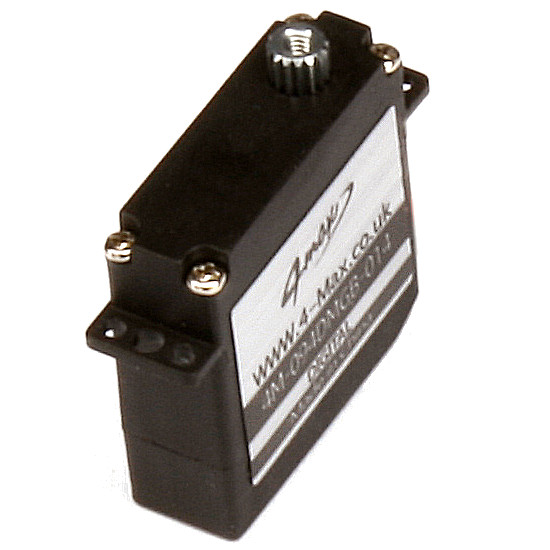

4-Max 9.4g Digital Metal Geared Ballraced Wing Servo

Specification

Operating Voltage Range

4.8 ~ 6.0VDC

Bearings

2x Ball Bearing

4.8V Operating Torque/Speed

1.4Kg.cm/0.12sec/60°

6.0V Operating Torque/Speed

1.9Kg.cm/0.1sec/60°

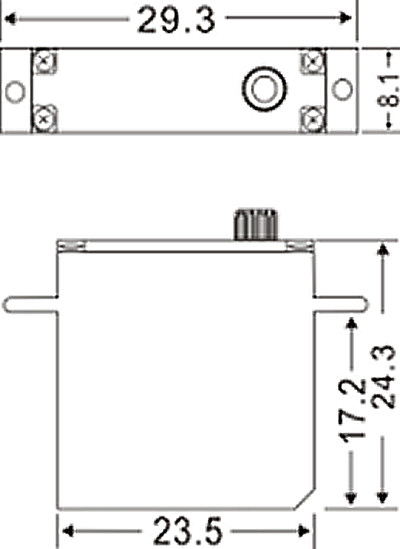

Dimensions

23.5mm X 8mm X 24mm

Gears

High Torque Plastic

Weight

9.0g / 0.332oz

Servo Arm

15 Teeth

Wire Length

150mm / 5.9"

We can also supply

MaxLoc™ Connectors , Servo Extension Leads, Servo Accessories.



Part Number Description Price Quantity
4M-094DMGB-014 1pcs of 4M-094DMGB-014
Digital Metal Geared Ballraced Wing Servo
£10.99
4M-094DMGB-014 5pcs of 4M-094DMGB-014
Digital Metal Geared Ballraced Wing Servo
SAVE £1.10 per Servo
£49.45
(£9.89ea)
