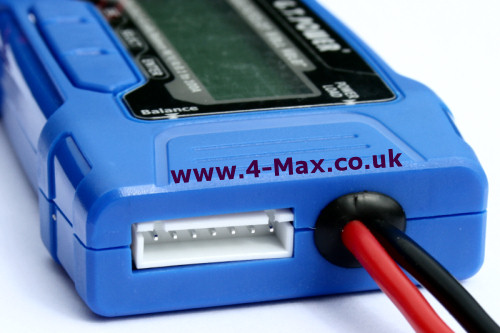

G.T. Power 100A Multifunction Watt Meter,
LiPo Capacity and Cell Checker & Balancer

Measures 7 Parameters

• Volts - Real time
• Volts - Minimum
• Amps - Real time
• Amps - Peak
• Watts - Real time
• Watts - Peak
• Watts/Hour

Features

• to prevent peak currents damaging battery, Electronic Speed Controllers, motors, wiring and connectors.
• Verify sufficient operating voltage under load.
• Confirm proper battery charger operation.
• Balance LoPo/LiIo/LiFe batteries
• Check individual cell voltages for LoPo/LiIo/LiFe batteries
• Check remaing capacity in LoPo/LiIo/LiFe batteries
• JST-XH 6 cell balance connector

Specifications

• Operates from 6.6V to 60V (on battery checker, balancer and watt meter functions)
• 0 to 100A
• 2 Line LCD display
• Dimension: 105 x 57 x 20 mm
• Weight: 80g

Please click here to download the user manual

Part Number	Description	Price	Quantity
PP-GTMULTIWATT	G.T Multifunction Watt Meter, Checker & Balancer	£22.50	No Longer Stocked
PP-BALBOARD-JST-XH 2-6S LiPo Balancer Board	2-6S LiPo Balance Board JST-XH Connector	£2.99
PP-BALBOARD-TP/FP 2-6S LiPo Balancer Board	2-6S LiPo Balance Board TP/FP Connector	£2.99
