G.T. Power X4 Pro Quad
4x 100W Output (Dual Input), Fully Featured Digital Intelligent Multifunctional Balancing Charger/Discharger/Cycler
LiPo, Li-lo, Li-Fe (A123M1), Li-HV
Ni-Cd, Ni-MH, Pb (Lead Acid)


G.T. Power X4 Pro Quad charger

G.T. Power X4 Pro Quad charger

G.T. Power X4 Pro Quad charger

G.T. Power X4 Pro Quad charger

Share on your Facebook Page



The G.T. Power X4 Pro Quad charger is a simple yet powerful quad output (4x 100W) dual input multifunctional charger with built in LiPo balancing (JST-XH) for up to 6S Lithium batteries.

It features 4 individual charging circuits allowing you to charge 4 batteries simultaneously regardless of battery type and cell count.
It is packed with features that exceeds many higher cost units.
Primarily designed for Lithium Polymer (LiPo, Li-Poly) batteries, it can also charge Li-Ion, Li-Fe (A123M1), Li-HV Ni-Cd, Ni-MH, and Pb (lead acid) batteries.

Features

  • Capacity Limit
  • Maximum safety
  • Temperature monitoring
  • Input power monitoring
  • Easy to program buttons
  • 5 battery memory
  • Individual cell monitoring

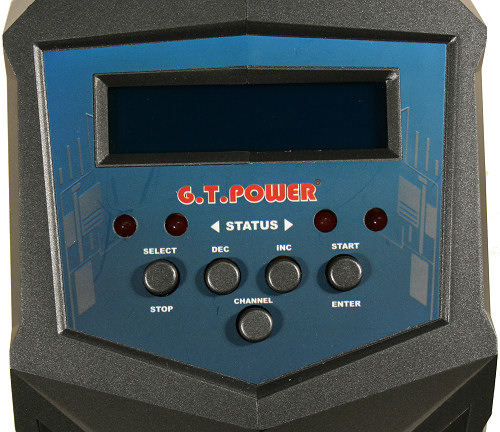

  • 2-Line Back lit LCD display
  • Built in Balancer to 6S packs
  • Cycle charging/discharging
  • Includes "FAST" & "STORAGE" Li-xx programs
  • Small Footprint
  • Long balance and charge leads (270 and 300mm respectively)

Product Details

  • Output 4x 100W (400W Total)
  • Discharge 4x 5W (20W Total)
  • Balancing current 300mAh/cell
  • Operating input voltage : 10 - 18V DC or 100-240V AC
  • Ni-Cad / Ni-MH : 1 - 15 Cells
  • Li-Ion / Li-Po / Li-Fe / Li-HV: 1 - 6 Series
  • Charge current : 0.1 - 7.0A
  • Discharging current: 0.1 - 1.0A
  • PB / Lead Acid : 2 - 20V
  • Built in Cell Balancer : Up to 6S (series) Li-Po (JST-XH connectors)
  • 2x 5.3V 2.3A USB outputs
  • No. of Cycles : Up to 5 Cycles
  • Weight : 1550g (without cables)
  • Dimensions : W110mm x D183mm x H238mm

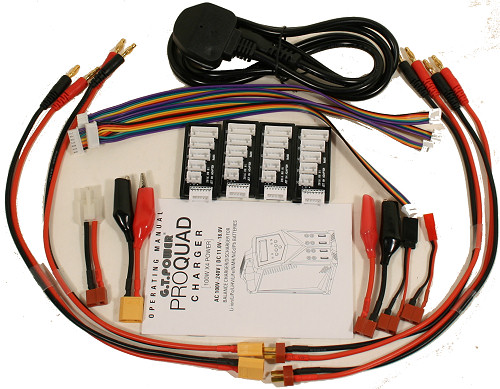

Includes (see above photo)

RCM&E May 2017

Click here to read the 3 Page RCM&E in-depth review on the GT Power ProQuad Charger



Please click here to download the user manual

Part Number Description Price Quantity
GT X4 Pro Quad-CHARGER G.T. Power X4 Pro Quad Charger £149.99
PP-BALBOARD-JST 4Max
2-6S LiPo Balancer Board
2-6S LiPo Balance Board
JST-XH Connector
£2.99
PP-MULTIDISTRIBUTOR G.T. Power Distribution Box £16.99

4Max

PP-CHGLEAD-A

Multi way charging lead. 4mm banana plugs to connect to your charger. Plus JST/BEC, Deans Style, Futaba and JR Tx charging plugs a female servo plug to charge your 4/5 cell NiMh pack, plus a spare pair of leads. £7.49
