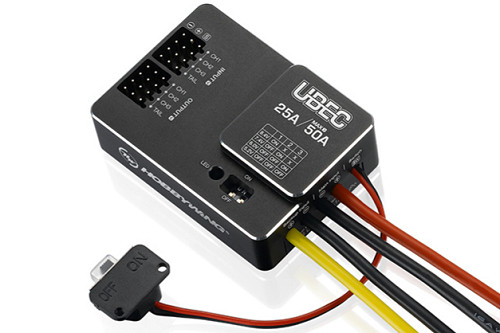

Hobbywing 25A
UBEC/Voltage
Regulator
3-18 LiPo Input, 6.0 / 7.4 / 8.4V O/P
Elegant metal case helps dissipate heat and reduce electromagnetic interference. High-efficient DC-DC voltage-regulating
chip pairs with the specially designed circuit hardware for the conversion efficiency of over 90%.
Continuous current of 25A with peak current of up to 50A. meets various application requirements.
Various Functions & Different Applications
External switch allows users to easily switch on/off the UBEC.
It has an extremely wide voltage range allows the main power supply ranges from 3S to 18S LiPo to be connected
to the UBEC.
Output voltage adjustable between 5.0V, 6.0V, 7.4V and 8.4V.
Up to 8 channels of outputs (in parallel)
can endure higher current and the internal LED indicates the working status of the UBEC.
Shoot-through protection prevents the voltage of the main power supply from directly flowing to the output of the UBEC and causing
damage to the connected electronic devices.
It also features over-current, (output end),
short-circuit, overheat, low-voltage cut off guarantee safety and reliability.
The backup power supply
feature allows the items connected to the UBEC to get power directly from the backup power
supply to guarantee the continuation of the normal operation when the main power supply connected to the UBEC is damaged or the UBEC fails.
Main Power Supply: 16AWG
Backup Power Supply: Yellow and black 16AWG
No connectors on the input wires.
Do not use the pre tinned ends as they are tinned with lead free solder which is rubbish. ONLY ever use LEADED
solder to
make electrical connections.
Constant Current |
25A (About 10-15 Digital Servos) |
Peak Current |
50A |
Input Voltage |
3-18S LiPo |
Backup Voltage |
1-2S LiPo |
Output Voltage |
5.2V / 6.0V / 7.4V / 8.4V DC (selectable by Jumper) |
Weight |
74g (includes all wires) |
Dimensions |
55mm x 40mm x 18mm |
|
