4-Max
The Fixed Wing
Electric Flight Specialists

Motor Specifications

Part Number

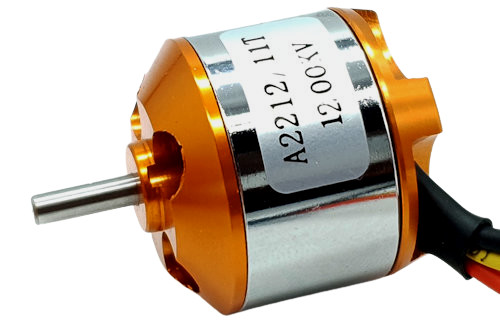

A2212-1200kv

RPM/Volt with no Load

1200kv

Diameter

28mm

Length

27mm

Weight

53g inc wires and connectors

Shaft Diameter

3.175mm (3.2mm)

Shaft Length

11mm

Bulkhead to Prop Length

40.5mm

Max current (efficiency)

4-10A (>75%)

Voltage Input Range

6V ~ 12.6 (2-3 LiPo Battery)

Connectors

3x 3.5mm Gold plated male bullet connectors

Thrust/Speed

635g/1.40lbs Using the supplied 9x5 prop at 11.1V (11.9A). Est Speed 42MPH

615g/1.36lbs Using a GWS 8x6 prop at 11.1V (12.6A). Est Speed 49MPH

Suitable Battery

3S 800mAh / 3S 1000mAh / 3S 1300mAh
