HOTA
D6 Ultra Dual Input and
Dual Output
Charger,
Upto 2x 325W on AC or DC
LiPo, Li-Hv, Li-lo, Li-Fe (A123M1),
Eneloop, Ni-Cd, Ni-MH, NiZn, Pb (Lead Acid)

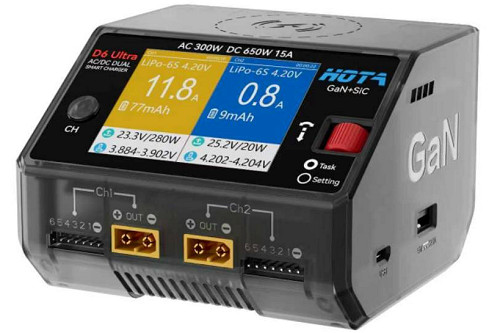

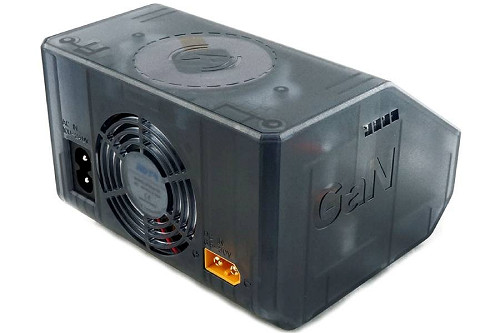

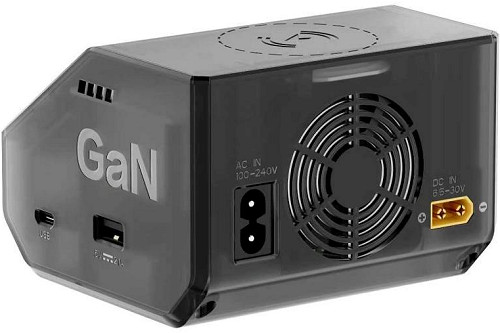

The HOTA D6 Ultra With Wireless Charging is a Fully Featured Multifunctional Dual Output and Dual Input Charger
The HOTA D6 Ultra is a powerful dual-channel charger that supports 1–6S LiPo batteries and a broad range of other battery chemistries. Its
integrated GaN power supply delivers up to 300W from a standard mains socket, offering fast, compact performance. For field use the unit
accepts DC input via an XT60 connector from 6.5–30V. When supplied with DC above 24V the charger can deliver up to 325W per channel, or 650W
combined.
Two main XT60 outputs provide convenient battery charging and the top panel also includes a USB-A 5V/2.1A port and a wireless charging pad
for accessories. The D6 Ultra supports NiCd, NiMH, LiPo, Li-Ion, LiHV and other common cell chemistries. Charging parameters are set using
a rotary dial and push button, while all key data is shown on a bright 2.8in colour screen.
In addition to charging, the unit offers discharging functionality. Internal discharge is limited to 15W per channel, but by using an external
load the charger can discharge up to 350W per channel for faster battery conditioning or testing.
Features
- 2.8" LCD screen
- Dual Input
- Dual Output
- Cell
checker
- Wireless Phone Charging
- USB Output
- Metal Scroll Wheel
Specification
- Input:
6.5-30V DC or 100-240V AC
- Battery Type:
LiPo LiHV, Li-Ion, LiFe@1-6S
NiCd, NiMh, NiZn,
@1-12S
Eneloop @1-12S
Pb @ 2-24V
- Bal Cur. : 1600mA @ 2-6S
- Accuracy: <0.005V
- Charging Power:
0.1-15A@325W x2 when DC I/P is over 24V
0.1-15A@150W x2 on AC Power (Supports Power Distribution)
- Discharging Power:
Internal 15W x2
External 325W x2
- USB-A Otput 5V/2.1A
- Display: LCD 2.8 inch 320x240 resolution
- Size: 108mm*105mm*76mm
- Output Connectors XT60
- Balance Connectors JST-XH
- Storage Temp -20°C to +60°C
- Operating Temp -0°C to +40°C
- Weight:
575g
Includes
1 x HOTA D6 Ultra With Wireless Charging Charger
1 x Mains Power Cable fitted with UK Plug
1 x Manual
Please click here to download
the HOTA D6 Ultra User manual
|
