HOTA F6 Ultra
Dual Input, High Power Quad Output Charger,
Upto 1000W on DC, 500W on AC
LiPo, Li-Hv, Li-lo, Li-Fe (A123M1),
Eneloop, Ni-Cd, Ni-MH, NiZn, Pb (Lead Acid)

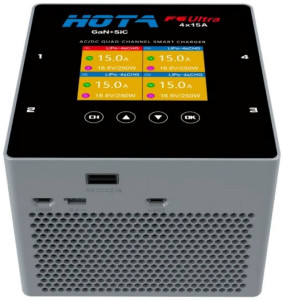

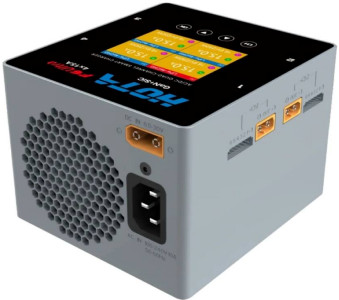

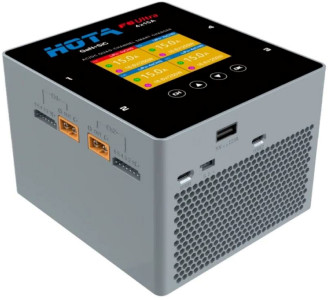

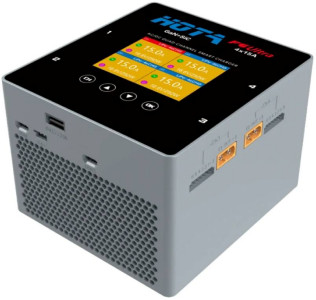

The HOTA F6 Ultra is a Fully Featured Multifunctional Dual Input High Power Quad Output Charger

The HOTA F6 Ultra is a high-power, four-channel smart charger designed to charge various types of battery packs. It combines a built-in high-efficiency power supply with flexible AC and DC input options so you can charge multiple batteries at home or out in the field.

Each channel delivers adjustable current and power, and the unit also supports internal and external discharging as well as advanced features such as regenerative discharge and multiple chemistries, including LiPo, LiHV, NiMH and lead-acid.

A clear colour display and intuitive controls make setup straightforward, while added USB outputs support charging of peripherals such as transmitters or mobile devices.

Features

• 2.4" IPS screen
• Dual Input
• Cell checker
• USB-A Output
• Over temperature protected
• Over capacity protected
• Input and Output reverse polarity protected
• Output short circuit protected
• Output over current protected
• Firmware upgradable
• Regenerative discharge
• PWM Measuremnt
• Servo/ESC testing/control

Specification

• Input: 6.5-30V DC or 100-240V AC
• Battery Type: LiPo, LiHV, Li-Ion, LiFe @1-6S
  NiMh, NiZn, @1-14S
  Pb @ 1-12S
  Eneloop 1-14S
• Bal Cur. : 1000mA @ 2-6S x4
• Accuracy: <0.005V
• Charging Power:
  Per Channel 0.1-15A@250W when DC I/P is over 24V (1000W total)
  Per Channel 0.1-15A@125W on AC power (500W total)
• Discharging Power:
  Internal 12W x4
  External 250W x4
• USB-A, 5V/2.1A
• Display: IPS 2.8 inch 320x240 resolution
• Size: 115mm x 126mm x 87mm
• Output Connectors XT60
• DC Input connector XT90
• Balance Connectors JST-XH
• Storage Temp -20°C to +60°C
• Operating Temp -0°C to +40°C
• Weight: Approx. 940g

Includes

1 x HOTA F6 Ultra Charger
1 x Mains Power Cable fitted with UK Plug
1 x Manual

Please click here to download the HOTA F6 Ultra user manual

Part Number	Description	Price	Quantity
HOTA F6 Ultra Charger	HOTA F6 Ultra Charger	£159.99	Coming Soon
Click on photo for larger image JST-XH Balance Board	2-6S LiPo Balance Board with JST-XH balance connectors (recommended)	£3.99
Click on photo for larger image XT60 Multi Way Charge Cable	XT60 Multi-connector charge cable (XT60, Deans, JR and JST-BEC) (Recommended)	£7.50
Click on photo for larger image XT60 Connectors	XT-60 type connectors (5 off male & 5 off female) (Comes with terminal covers)	£5.99
Click on photo for larger image 4mm bullet to XT60 Input Power Cable	4mm bullet to XT60 Input Power Cable	£2.99
Click on photo for larger image 4mm bullet to XT60 Input Power Cable	Crocodile Clips to XT60 Input Power Cable 14AWG, 1000mm	£5.99
Click on photo for larger image XT60 male to DEANS Male Charging Cable, 14AWG, Approx 300mm long	XT60 Female to DEANS Male Charging Cable, 14AWG, Approx 300mm long	£3.99
Click on photo for larger image XT60 Male to XT60 Female Charging Cable, 14AWG, Approx 300mm long	XT60 Male to XT60 Female Charging Cable, 14AWG, Approx 300mm long	£3.99
Click on photo for larger image XT60 Male to XT90 Female Charging Cable, 12AWG Approx. 300mm long	XT60 Female to XT90 Female Charging Cable, 12AWG, Approx 300mm long	£4.99
