ToolkitRC
M6 Multifunction, 150W Charger,
LiPo Tester, Servo Tester, Wattmeter, Balancer
LiPo, Li-lo, Li-Fe (A123M1),
Ni-Cd, Ni-MH, Pb (Lead Acid)

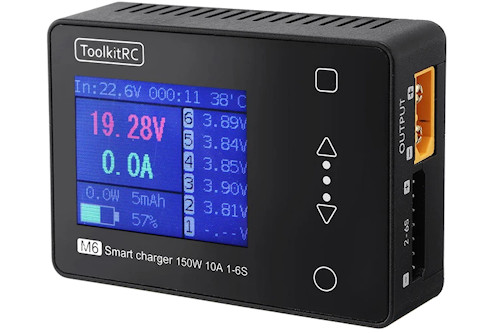

The ToolKit-RC M6 is the worlds smallest
150W charger with a colour screen!
With a 150W,
10A charger at its heart the M6 also has a servo tester, cell checker, a wattmeter,
PWM/PPM/Sbus input testers and output generator along with a variable voltage and current
DC output control.
Please note you will still need a power supply to use this charger at home.
We suggest the Toolkit ADP180

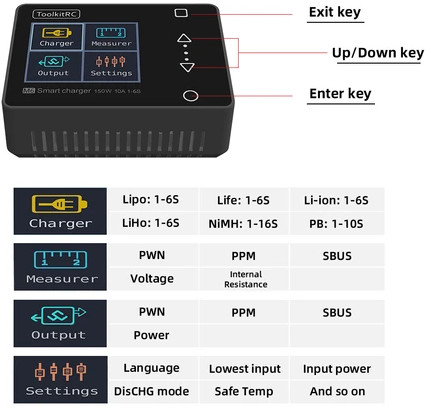

- Receiver and servo test functions
- Wattmeter
- Lipo, LiHV, LiFe, Lion, 1-6S,
NiMh 1-16s.
PB 1.2-12V
- Balance Lithium cells
- Charging current: Maximum10A (150W)
- Discharge Current:
Recovery MAX 10A (150W)
N
normal mode MAX 2A (8W)
- Lithium battery full voltage can be set (TVC)
- Can measure battery voltage,
battery internal resistance,
lithium battery
balance management
- Measurement of signal values such as PWM/PPM/SBUS - 1µs accuracy
- Can output PWM/PPM/SBUS standard signal, accuracy up to 1µs
- Constant current, constant voltage source output, can customise1-28v constant
voltage, 1-10A constant current
- Can be adapted to the main stream UAV battery,
automatically activated and
charged
- USB 2.1A @ 5.0V output, to charge mobile devices
- Device simulation for USB flash drive, copy upgrade file to achieve product
firmware upgrade
Specifications
- Input: 7.0-28.0V DC
- Battery Types: Lipo LiHV LiFe @1-6S. NiMh @1-16S, Pb @1-10S
- Power Output: 150W (Max 10A)
- 150W MAX 10A Recycle mode, 8W Max
2A Normal mode
- USB: 2.1A @ 5.0V
- Dimensions: 70 x 50 x 26 mm
- Weight: 80g
- LCD: 1.8 inch TFT RGB, 160 x 128 Pixel
Measures
- PWM 880-2200µs @20-400Hz
- PPM 880-2200µs*8CH @20-50Hz
- SBUS 880-2200µs*16CH @20-100Hz
- 1.0-5.0V @1-6S
- 10-100mR @1-6S
Outputs
- PWM 500-2500µs @20-1000Hz
- PPM 880-2200µs*8CH @20-50Hz
- SBUS 880-2200µs*16CH @20-100Hz
- Power Supply 1.0-28.0V @1.0-10A mode:CC+CV
- Over Current Cut Off Time: 50mS
Includes (see above photo)
1 x TookitRC Charger
1 x USB Cable
1 x Manual
Please click here to download
the ToolkitRC M6 manual
|
