ToolkitRC M6D Multifunction Dual Output Charger,
Up to 500W ,
LiPo, Li-lo, Li-Fe (A123M1),
Ni-Cd, Ni-MH, Pb (Lead Acid)


ToolkitRC Dual Output 500W Multifunction Charger

ToolkitRC Dual Output 500W Multifunction Charger

ToolkitRC Dual Output 500W Multifunction Charger

Share on your Facebook Page



The ToolKit-RC M6D is a Fully Featured Multifunctional Dual Output Charger

The M6D squashes two high performance chargers into a single unit.
It has 2x 2-6S 250W chargers and a 5V USB output that can be used to power some devices or simply charge your phone or go pro in the field.

Please note you will still need a power supply to use this charger at home.
We suggest the Toolkit ADP180

Features

  • 2.4" LCD screen
  • Dual Channel
  • Asynchronous and synchronous modes
  • Cell checker
  • USB 5V Output

Specification

  • Input: 7-28V@MAX30A
  • Battery Type: LiPo LiHV LiFe Lion@1-6S
    NiMh @1-16S Pb @1-10S
  • Bal Cur. : 800mA @2-6S
  • Accuracy: <0.005V
  • Charging Power:
    0.1-15A@250W x2(Asynchronous mode)
    0.1-25A@500W (Synchronous mode)
  • Discharging Power:
    0.1-15A@250Wx2 Recycle Mode
    0.1-3A@12Wx2 Normal Mode
  • USB: 2.1A@5V upgrade@USB3.0
  • Battery Voltage: 1.0V-5.0V @1-6S
  • Battery Internal Resistance: 1-100mR @1-6S
  • Display: LCD IPS 2.4 inch 320x240 resolution
  • Size: 98mm*68mm*35mm
  • Weight: 220g

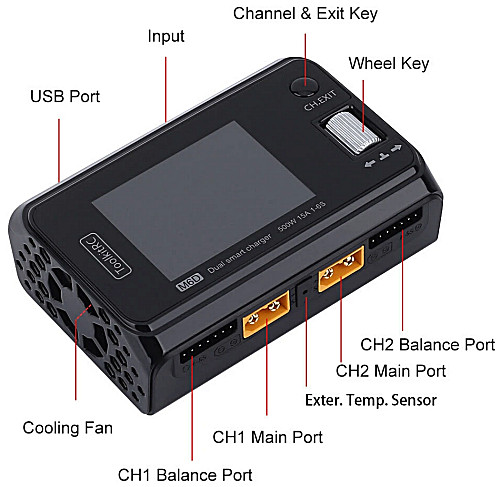

Includes (see above photo)

1 x ToolkitRC M6D Charger
1 x USB Cable
1 x Manual

Please click here to download the ToolkitRC M6D manual

Part Number Description Price Quantity
ToolkitRC M6D Charger ToolkitRC M6D Multi Function Charger £75.49
4Max
Click on photo for
larger image
JST-XH Balance Board
2-6S LiPo Balance Board with
JST-XH balance connectors
(recommended)
£3.99
XT60 Multi Way Charge Cable
Click on photo for
larger image
XT60 Multi Way Charge Cable
XT60 Multi-connector charge cable
(XT60, Deans, JR and JST-BEC)
(Recommended)
£7.50
XT60H Connectors
Click on photo for
larger image
XT60 Connectors
XT-60 type connectors
(5 off male & 5 off female)
(Comes with terminal covers)
£5.99
4mm bullet to XT60 Input Power Cable
Click on photo for
larger image
4mm bullet to XT60 Input Power Cable
4mm bullet to XT60 Input Power Cable £2.99
4mm bullet to XT60 Input Power Cable
Click on photo for
larger image
4mm bullet to XT60 Input Power Cable
Crocodile Clips to XT60 Input Power Cable
14AWG, 1000mm
£5.99
XT60 to DEANS Charging Cable
Click on photo for
larger image
XT60 male to DEANS Male Charging Cable, 14AWG, Approx 300mm long
XT60 Female to DEANS Male Charging Cable, 14AWG, Approx 300mm long £3.99
XT60 male to XT60 Female chargin g cable
Click on photo for
larger image
XT60 Male to XT60 Female Charging Cable, 14AWG, Approx 300mm long
XT60 Male to XT60 Female Charging Cable, 14AWG, Approx 300mm long £3.99
XT60 Male to XT90 Female charging Cable
Click on photo for
larger image
XT60 Male to XT90 Female Charging Cable, 12AWG Approx. 300mm long
XT60 Female to XT90 Female Charging Cable, 12AWG, Approx 300mm long £4.99
