ToolkitRC M6DAC Multifunction
Dual Output and Dual Input Charger,
Upto 2x 350W Asynchronous mode or
Upto 1x 700W Synchronous mode or
LiPo, Li-Hv, Li-lo, Li-Fe (A123M1),
Ni-Cd, Ni-MH, Pb (Lead Acid)

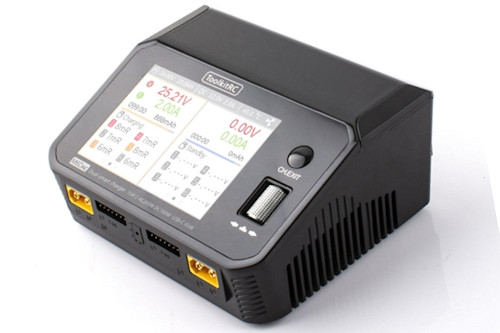

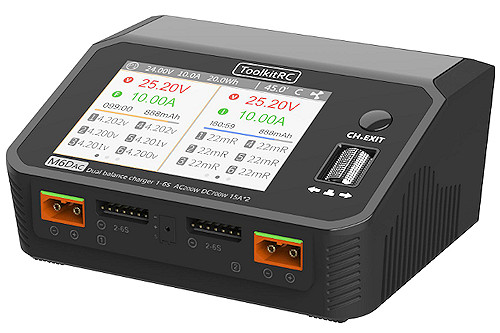

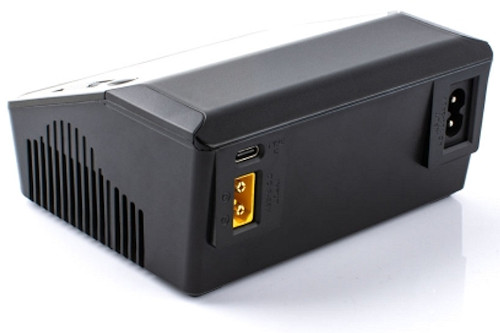

ToolkitRC M6DAC Charger

ToolkitRC M6DAC Charger

ToolkitRC M6DAC Charger

Share on your Facebook Page



The ToolKit-RC M6DAC is a Fully Featured Multifunctional Dual Output and Dual Input Charger

The M6DAC squashes two high performance chargers into a single unit.
It has 2x 2-6S 350W chargers and a USB output that can be used to power some devices or simply charge your phone or go pro in the field.

Features

  • 3.5" LCD screen
  • Dual Input and Dual Output
  • Asynchronous and synchronous modes
  • Cell checker
  • USB Output
  • Metal Scroll Wheel

Specification

  • Input: 7-28V DC or 100-240V AC
  • Battery Type: LiPo LiHV Li-Ion, LiFe @1-6S
    NiMh @1-16S Pb @1-10S
  • Bal Cur. : 1000mA @2-6S
  • Accuracy: <0.005V
  • Charging Power:
    0.1-15A@350W x2(Asynchronous mode)
    0.1-25A@700W (Synchronous mode)
  • Discharging Power:
    0.1-15A@350Wx2 Recycle Mode
    0.1-3A@15Wx2 Normal Mode
  • USB-C Upgraded to 20V@3.25V, 65W Max
  • Battery Voltage: 1.0V-5.0V @1-6S
  • Battery Internal Resistance: 1-100mR @1-6S
  • Display: LCD IPS 3.5 inch 480x320 resolution
  • Size: 127mm*106mm*57mm
  • Weight: 520g



Includes

1 x ToolkitRC M6DAC Charger
1 x USB Cable
1x Mains Power Cable fitted with UK Plug
1 x Manual

Please click here to download the ToolkitRC M6DAC manual

Part Number Description Price Quantity
ToolkitRC M6DAC Charger ToolkitRC M6DAC Multi Function
Dual I/P, Dual O/P 700W Charger
£164.99
XT60 Multi Way Charge Cable
Click on photo for
larger image
XT60 Multi Way Charge Cable
XT60 Multi-connector charge cable
(XT60, Deans, JR and JST-BEC)
£4.99
XT60 Connectors
Click on photo for
larger image
XT60 Connectors
XT-60 type connectors
(5 off male & 5 off female)
£5.50
XT60H Connectors
Click on photo for
larger image
XT60 Connectors
XT-60 type connectors
(5 off male & 5 off female)
(Comes with terminal covers)
£5.99
4mm bullet to XT60 Input Power Cable
Click on photo for
larger image
4mm bullet to XT60 Input Power Cable
4mm bullet to XT60 Input Power Cable £2.99
