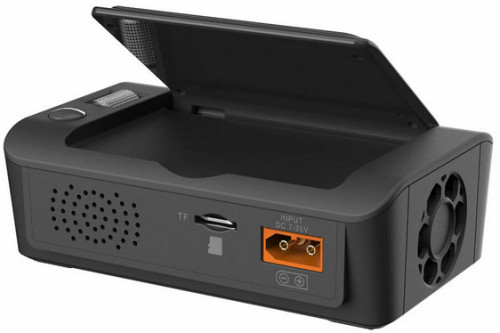

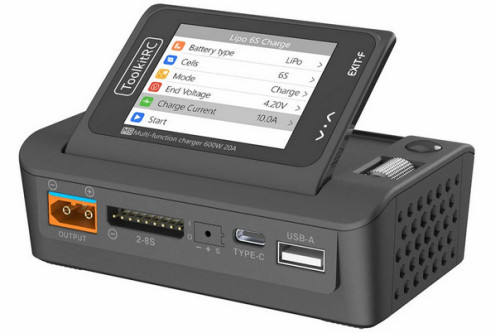

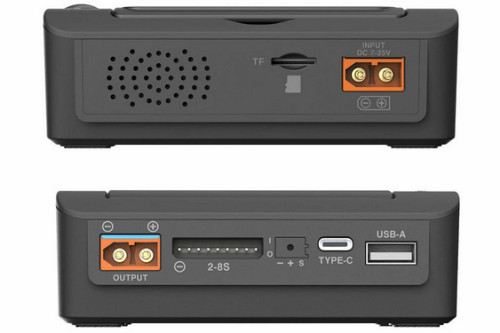

ToolkitRC
M9 Multifunction, 600W, 20A Charger,
With Large Colour Screen and Audio Function
Watt Meter (20A), Battery Internal Resistance, Servo and Signal Tester and USB A and C O/P
LiPo, Li-lo, Li-Fe (A123M1),
Ni-Cd, Ni-MH, Pb (Lead Acid)
So Many Functions in Such a Small Charger
At its heart the M9 is a 600W, 20A
charger, it can also be a servo tester, cell checker, a wattmeter,
PWM/PPM/Sbus input testers and output generator.
Please note you will still need a power supply to use this charger at home.
We suggest the Toolkit ADP200
- Receiver and servo test functions
- Wattmeter (20A Max)
- Lipo, LiHV, LiFe, Lion, 1-6S,
NiMh 1-16 cells
PB 1.2-12V
- Balance Lithium cells
- Charging current: Maximum (600W, 20A)
- Discharge Current:
Recovery MAX 10A (600W, 20A)
N
normal mode MAX 3A (20W)
- Lithium battery full voltage can be set (TVC)
- Can measure battery voltage,
battery internal resistance
- lithium battery
balance management
- Measurement of signal values such as PWM/PPM/SBUS - 1µs accuracy
- Can output PWM/PPM/SBUS standard signal, accuracy up to 1µs
- USB 2.1A @ 5.0V output, to charge mobile devices (Type A and Type C)
Specifications
- Input: 7.0-35.0V DC @Max 25A
- Battery Types: Lipo LiHV LiFe, LTO @1-8S. NiMh @1-20S, Pb @1-10S
- Power Output: 600W, (Max 20A)
- 600W, 20A MAX 20A Recycle mode, 20W Max
3A Normal mode
- USB: 2.1A @ 5.0V
- Dimensions: 108 x 71 x 36 mm
- Weight: 235g

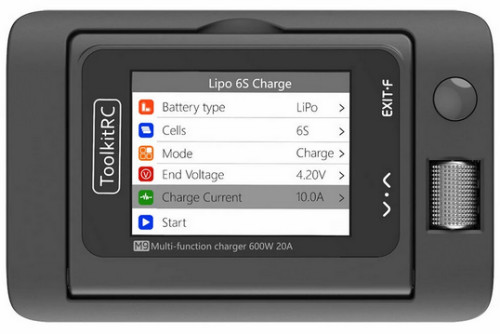

- LCD: 2.4 inch RGB, 320 x 240 Pixel
Measures
- PWM 880-2200µs @20-400Hz
- PPM 880-2200µs*8CH @20-50Hz
- SBUS 880-2200µs*16CH @20-100Hz
- 1.0-5.0V @1-8S
- 10-100mΩ @1-8S
Outputs
- PWM 500-2500µs @20-1000Hz
- PPM 880-2200µs*8CH @20-50Hz
- SBUS 880-2200µs*16CH @74Hz
- Power Supply 1.0-35.0V @1.0-20A mode:CC+CV
Includes
1 x TookitRC Charger
1 x USB Cable
1 x Manual
Please click here to download
the ToolkitRC M9 manual
|
