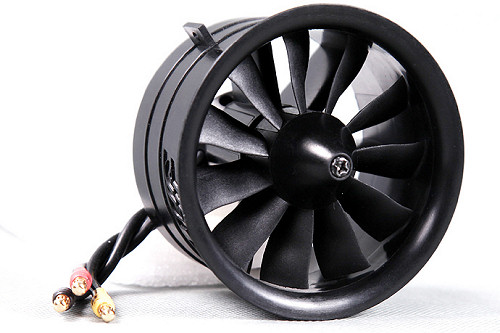

FMS 64mm 11 Blade 4S EDF Unit (Fan and Motor)

64mm 11 Blade FMS EDF Fan suitable for 4S LiPo Setups

64mm FMS EDF Unit for 4S LiPo

64mm FMS EDF Unit for 4S LiPo



These EDF units are made using all composite construction and are injected molded which produces a very light weight (135g) yet incredibly strong and ridged assembly. all units are dynamicially balanced at the factory which results in a superior and low vibration assembly which also leads to higher effeciency.

The 11 Blade design gives great effeciency and a wonderful"jet like" sound which rivals and Metal EDF currently available.

Designed by professional aerodynamicist and tested in the prestigious Baihang University.

Supplied with 2840-3150kv outrunner motor.

Performance



4S Version

Motor

2840-3150kv

Volts under Load

14.79V

Current

42.5A

Watts

628W

Static Thrust

1162g /
2.56lbs

Weight (Assembled unit inc. motor)

135g

Fan Swept Area

2552mm²

Note:


Do not run on 5S or above

There may be some scratches on the inner wall surface of the duct. This happens in the factory testing and balancing process. The scratches have no affect on performance.

We will not accept units back because of this scratching





Part Number Description Price Quantity
FMS 64mm EDF
(4S LiPo)
64mm, 11 Blade Fan unit, pre assembled with high power Outrunner 2840-3150kv brushless Outrunner motor £53.99
Spare FMS 64mm
Impelller
Spare FMS 64mm Impelller £11.99
4M-HESC60A35V2 60A ESC and Programming Box £59.94
PPL-60C4S-2600 4S, 2600mAh LiPo Battery. 60C £39.50
PPL-60C4S-3300 4S, 3300mAh 60C LiPo Battery £49.00 Out of Stock
AFTERBURN-LEDS-64 Afterburner LEDs for 64mm EDF £18.99
