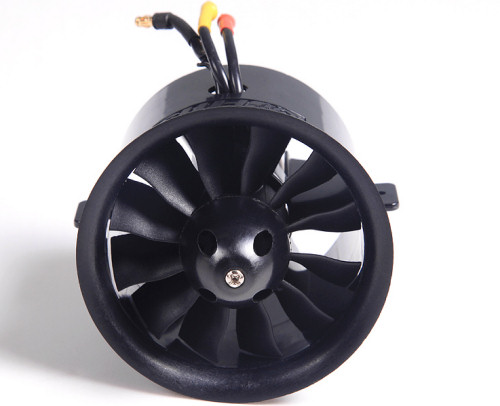

FMS 70mm 12 Blade EDF Unit V2
(Fan and Motor)

70mm 12 Blade EDF Fan suitable for 4S LiPo Setups

70mm FMS EDF Unit for 4S LiPo

70mm FMS EDF Unit for 4S LiPo

70mm FMS EDF Unit for 4S LiPo

These EDF units are made using all composite construction and are injected molded which produces a very light weight (75g) yet incredibly strong and ridged assembly. all units are dynamicially balanced at the factory which results in a superior and low vibration assembly which also leads to higher effeciency.

The 12 Blade design gives great effeciency and a wonderful"jet like" sound which rivals and Metal EDF currently available.

Designed by professional aerodynamicist and tested in the prestigious Baihang University.

Supplied with 2845-2750kv outrunner motor.

Performance



4S Version

Motor

2845-2750kv

Volts under Load

14.79V

Current

50.0A

Watts

740W

Static Thrust

1253g /
2.76lbs

Weight (Assembled unit inc. motor)

181g

Fan Swept Area

2889mm²

Note:


Do not run on 5S or above

There may be some scratches on the inner wall surface of the duct. This happens in the factory testing and balancing process. The scratches have no affect on performance.

We will not accept units back because of this scratching





Part Number Description Price Quantity
FMS 70mm EDF V2
(4S LiPo)
70mm, 12 Blade Fan unit, pre assembled with high power Outrunner 2845-2750kv brushless motor V2 £70.20
Spare FMS 70mm
Impelller
Spare FMS 70mm Impelller £14.29
4M-HESC80AV2 80A Brushless ESC
+ Programming Box
£73.99
AFTERBURN-LEDS-70 Afterburner LEDs for 70mm EDF £22.50
