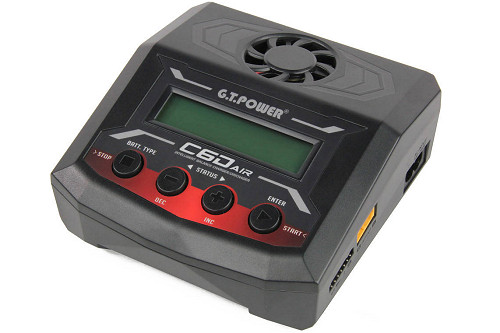

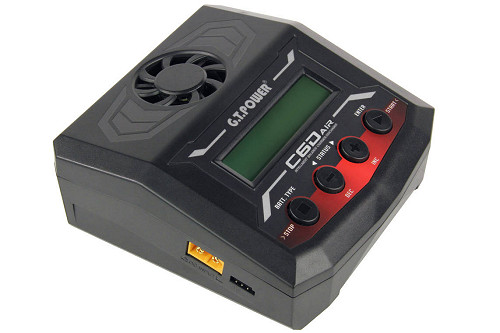

G.T. Power
C6D Air
(Dual Input), 100W Fully Featured
Digital Intelligent Multifunctional
BalancingCharger/Discharger/Cycler
LiPo, Li-lo, Li-Fe (A123M1),
Ni-Cd, Ni-MH, Pb (Lead Acid)
Charger manufacturers come and charger manufacturers go, however G.T. Power is here to stay. Widely regarded as providing the best quality
battery charging and care devices available in the R/C world, its products have made many friends over the years and, indeed, the C6D Air
is set only to increase the following. Offering an impressive 300W of DC charge power (100W AC) the C6D is able to charge batteries with
a much higher amperage in far less time. With a choice of mains or 11-26V DC input, it's ideal for use both at home and at the field, track
or lake. Moreover the backlit LCD makes it simple to select the charge parameters while also monitoring a battery's status in any light.
Boasting compatibility with new SSLB (Solid State Lithium Battery) technology, coupled with some truly impressive secondary functions, such as a tyre wam
and battery repair mode, this intelligent unit is not only powerful and compact but convenient and massively versatile, too.
Features
High-power and high-performance circuit
It employs the circuit
that has maximum output power of 100W. As a result it can charge
or discharge up to 15 cells of NiCd/NiMH and 6 series of Lithium
batteries with maximum current of 12.0A. Furthermore the cooling
system is so efficient that can hold such a power without any trouble
of running the CPU or the operating program.
Individual voltage balancer for Lithium batteries inside
It has an individual-cell-voltage balancer inside. This does not
require any extra balancer separately when charging Lithium batteries
(Lilo/LiPO/LiFe) for cell voltage balancing.
Balance individual cells on discharge/Storage
It also can monitor and balance individual cells of the Lithium
battery pack during the discharge process. If the voltage of any
one cell varies abnormally, the process will be stopped with the
error message.
Accept various types of Lithium battery
It can accept all types of Lithium batteries - They have different characteristics by their chemistry. You
can select any one of them that you are going to process before
the job. For their specifications, refer `Warnings and safety notes`
section.
Maximum safety
Delta-peak sensitivity: The automatic charge termination program
works on the principle of the Delta-peak voltage detection. (NiCd/NiMH)
Auto-charge current limit: When charging NiCd or
NiMH at `AUTO` current mode, you can set the upper limit of change
current to avoid from high current charging. This is very useful
when charging the low impedance and small capacity NiMH battery
in `AUTO` mode.
Capacity limit: The changing capacity always calculated by multiple
of the charging current and time. If the charging capacity exceeds
the limit the process will be terminated automatically when you
set the maximum value.
Processing time limit: you can also restrain the maximum process
time to prevent form any possible defect.
Input power monitor: To protect the car battery using as input
power from being damaged the voltage of it always monitored. If
it drops below the lower limit the process will be ended automatically.
Automatic cooling fan: The electric cooling fan comes into action
automatically only when the internal temperature of the unit is
raised.
Cyclic charging / discharging
Perform 1 to 5 cycles of charge>discharge or discharge>charge continually
for battery (NiMh and NiCd only) refreshing and balancing.
Product Details
- Output 100W on AC and 300W on DC
- Discharge 5W, 300W in FB-DIS mode
- Balancing current
100mAh/cell
- Operating input
voltage : 11 - 26V
DC or 100-240V AC (50/60Hz)
- Ni-Cad / Ni-MH
: 1 - 15 cells
- Li-Ion / Li-HV/ Li-Po
/ Li-Fe : 1 - 6
cells
- SSLB : 1 - 6 cells
- AGM cells
- Charge current : 0.1 - 12.0A
- Discharging current:
0.1 - 3.0A 12A in FB-DIS mode
- PB / Lead Acid
: 2 - 20V
- Built in Cell
Ballancer : Up to
6S (series) Li-Po
(JST-XH connectors)
- No. of Cycles
: Up to 5 Cycles
- Weight : 424g
- Dimensions : 119mm
x 122mm x 53.5mm
- Battery Repair Mode
(restores capacity and performance).
- Firmware can be updated
- Servo test function
- Battery warm function
- Check individual cell voltages (Li-xx batteries only)
- Cell internal resistance checking (Li-xx batteries only)
Includes:
- 1x C6D Air multi-function battery charger.
- 1x Mains power lead.
- 1x Comprehensive instruction manual.
