G.T. Power
C6D (Dual Input), 50W Fully Featured
Digital Intelligent Multifunctional
BalancingCharger/Discharger/Cycler
LiPo, Li-lo, Li-Fe (A123M1),
Ni-Cd, Ni-MH, Pb (Lead Acid)
Features
Optimized operating software
When charging or discharging,
It has an `AUTO` function that sets the feeding current automatically.
Especially for Lithium batteries, it can prevent the over-charging
can lead to an explosion by users fault. Every program in the unit
is controlled with mutual links and communication for every possible
error so it introduces a maximum safety. These can be set at users
option. Special recharge plugsport for receiver, transmitter and
igniter charger. And for frequently used charger port such as multi
purpose crocodile pin etc.

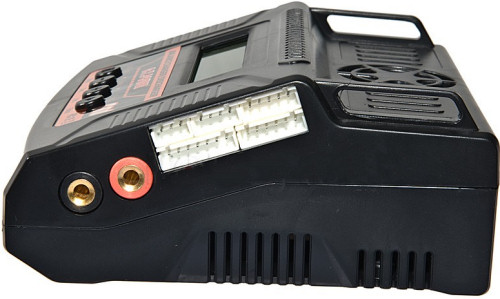

It provides most convenient balance charge port for Lithium batteries,
with separated 3,4,5,6 charge port, and external reverse connector.
High-power and high-performance circuit
It employs the circuit
that has maximum output power of 50W. As a result it can charge
or discharge up to 15 cells of NiCd/NiMH and 6 series of Lithium
batteries with maximum current of 6.0A. Furthermore the cooling
system is so efficient that can hold such a power without any trouble
of running the CUP or the operating program.
Individual voltage balancer for Lithium batteries inside
It has an individual-cell-voltage balancer inside. This does not
require any extra balancer separately when charging Lithium batteries
(Lilo/LiPO/LiFe) for cell voltage balancing.
Balance individual cells on discharge
It also can monitor and balance individual cells of the Lithium
battery pack during the discharge process. If the voltage of any
one cell varies abnormally, the process will be stopped with the
error message.
Accept various types of Lithium battery
It can accept three types of Lithium batteries - Lilo, LiPo and
LiFe. They have different characteristics by their chemistry. You
can select any one of them that you are going to process before
the job. For their specifications, refer `Warnings and safety notes`
section.
Lithium battery `Fast` and `Storage` mode
You can charge Lithium battery for special purposes. `Fast` charge
reduces the charging time of Lithium battery and `storage` mode
controls the final voltage of the battery to be suit for long time
storage.
Maximum safety
Delta-peak sensitivity: The automatic charge termination program
works on the principle of the Delta-peak voltage detection. (NiCd/NiMH)
Auto-charge current limit: When charging NiCd or
NiMH at `AUTO` current mode, you can set the upper limit of change
current to avoid from high current charging. This is very useful
when charging the low impedance and small capacity NiMH battery
in `AUTO` mode.
Capacity limit: The changing capacity always calculated by multiple
of the charging current and time. If the charging capacity exceeds
the limit the process will be terminated automatically when you
set the maximum value.
Processing time limit: you can also restrain the maximum process
time to prevent form any possible defect.
Input power monitor: To protect the car battery using as input
power from being damaged the voltage of it always monitored. If
it drops below the lower limit the process will be ended automatically.
Automatic cooling fan: The electric cooling fan comes into action
automatically only when the internal temperature of the unit is
raised.
Data store / load
For users convenience it can store maximum 5 data of different
batteries. You can establish the data contains program setting
of the battery to charge or discharge continually. These data can
be called out at any time you need and the process can be executed
without program setting.
Cyclic charging / discharging
Perform 1 to 5 cycles of charge>discharge or discharge>charge continually
for battery refreshing and balancing.
Product Details
- Output 50W
- Discharge 5W
- Balancing current
300mAh/cell
- Operating input
voltage : 11 - 18V
DC or 100-240V AC (50/60Hz)
- Ni-Cad / Ni-MH
: 1 - 15 Cells
- Li-Ion / Li-Po
/ Li-Fe : 1 - 6
Series
- Charge current : 0.1 - 6.0A
- Discharging current:
0.1 - 1.0A
- PB / Lead Acid
: 2 - 20V
- Built in Cell
Ballancer : Up to
6S (series) Li-Po
(JST-XH connectors)
- No. of Cycles
: Up to 5 Cycles
- Weight : 440g
- Dimensions : 136mm
x 1270mm x 56mm
Includes:
1 x Charger
1 x Alligator Clips to DC I/P Cable
1 x Alligator Clips to Dean style connector
1 x Glow plug connector to Dean style connector cable
1 x Micro red JST/BEC connector to Dean style connector cable
1 x Servo connector to Dean style connector cable
1 x Mains"kettle" lead with UK plug
1 x Manual
