PPOM-1413-3800

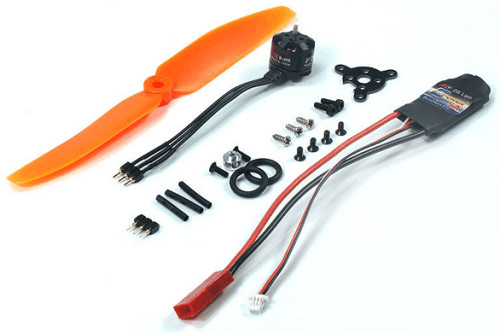

Motor comes with all the items in the above photo - Motor, Prop (5x3), Connectors, Motor mount, prop saver and 5A ESC, and all screws

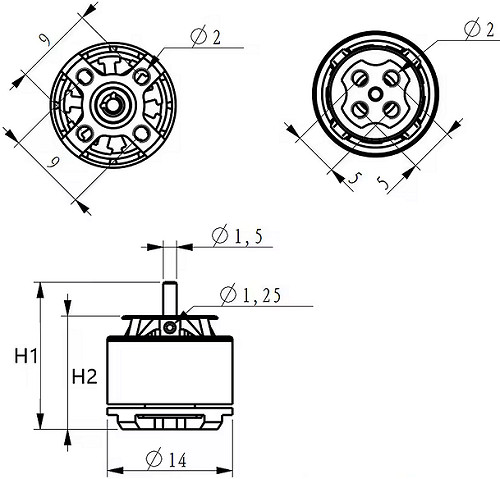

Dia	Length	Weight	Shaft Diameter	H1	H2
14mm	13mm	7.0g	1.5mm	17.5mm	12.7mm

Battery: 1-2S
KV: 3800
Max. Power: 6A/65W
Length of front shaft: 5mm
Dimension: 14mm x 13mm
Diameter of shaft: 1.5mm
Weight: 7g 0.2469oz

GWS Prop	Volts	Amps	Watts	RPM	Thrust (g)	Thrust (oz)	Efficiency (g/W)
4x2.5	7.4	4.7	34.8	16,620	137	4.86	6.203.94

We recommend that you only use GWS props with this motor

Part Number	RPM/ Volt	Batt	Operating Current	ESC	Price	Quantity
PPOM-1413-3800	3800	1-2 LiPo	6A	5A	£34.99
