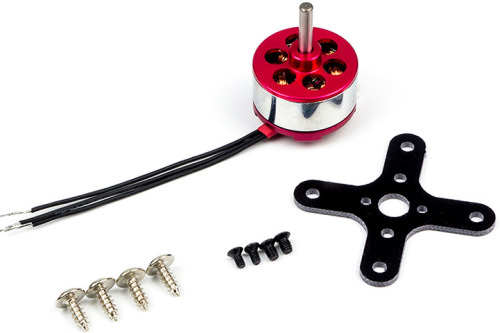

PPOM-2314-2400

Dia	Length	Weight	Shaft Diameter
23mm	14mm	21g	3mm

Battery: 2S
KV: 2400
Max. Power: 15A/100W
Length of front shaft: 13.5mm
Dimension: 23mm x 14mm
Diameter of shaft: 3mm
Weight: 21g 0.74oz

GWS Prop	Volts	Amps	Watts	RPM	Thrust (g)	Thrust (oz)
6x3	7.5	8.0	60	12,600	255	9.0
7x3.5	7.5	8.6	64.5	11,250	310	10.9

We recommend that you only use GWS props with this motor

Part Number	RPM/ Volt	Batt	Operating Current	ESC	Price	Quantity
PPOM-2314-2400	2400	2 LiPo	9A	12A	£14.99
PP-PDRV30-50	Prop Driver - 3.0mm Shaft/5.0mm Prop				£2.75
