Bit Secure Shopping4-Max 4M-094DMGB-014 9.4g Digital Metal Geared
|
||||||||||||||||||||
|
All Servos come with a full set of arms and accessories

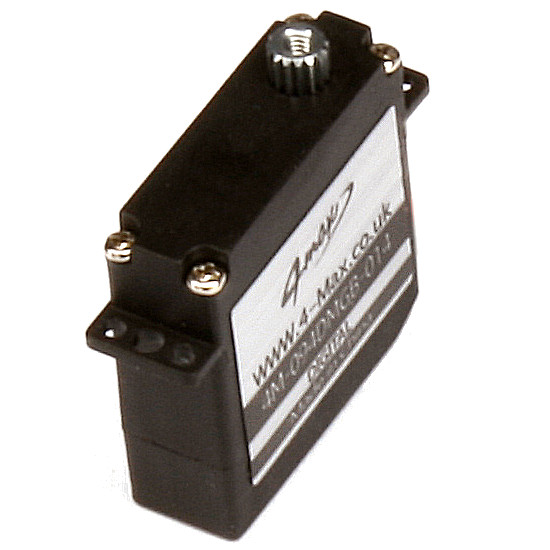

4-Max 4M-094DMGB-014 9.4g Digital Metal Geared Ballraced
Wing Servo 1.4Kg/1.9Kg
|
||||||||||||||||||||
Specification |
|
Operating Voltage Range |
4.8 ~ 6.0VDC |
Bearings |
2x Ball Bearing |
| 4.8V Operating Torque/Speed |
1.4Kg.cm/0.12sec/60° |
6.0V Operating Torque/Speed |
1.9Kg.cm/0.1sec/60° |

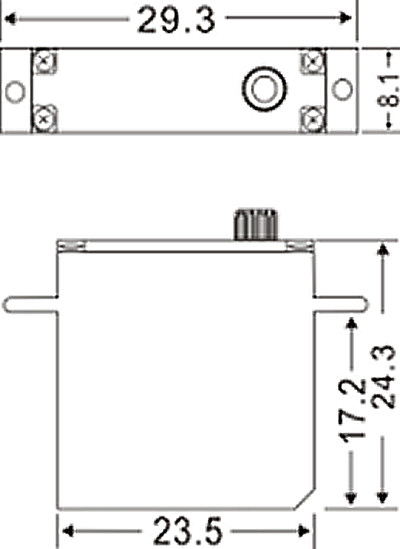

Dimensions |
23.5mm X 8.1mm X 24.3mm |
Gears |
Metal |
Weight |
9.0g / 0.317oz |
Servo Arm |
15 Teeth |
Wire Length |
150mm / 5.9" |
We can also supply
MaxLoc™ Connectors , Servo Extension Leads, Servo Accessories.
