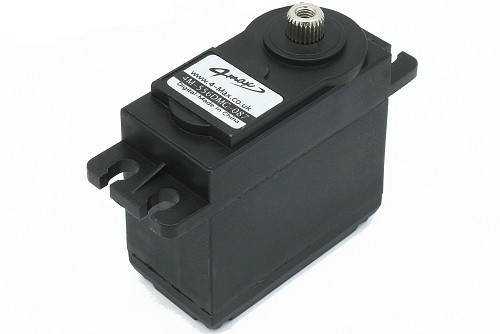

4-Max 55.6g Standard Sized Digital Metal Geared
Dual Ball Raced Servo, 8.7Kg/9.4Kg Pull
From £14.17!

4-Max 55.6g Standard Sized Digital  Metal Geared Dual Ball Raced  Servo

4-Max 55.6g Standard Sized Digital  Metal Geared Dual Ball Raced  Servo

All Servos come with a full set of arms and accessories

Share on your Facebook Page

4-Max 8.7Kg/9.4Kg Standard Sized Digital Metal Geared Ball Raced Servo

Specification

Operating Voltage Range

4.8 ~ 6.0VDC

Motor

Core Motor

4.8V Operating Torque/Speed

8.7Kg.cm/0.15sec/60°

6.0V Operating Torque/Speed

9.4Kg.cm/0.13sec/60°

Dimensions

40.5mm X 20.2mm X 38mm

Gears

Precision Metal Gear

Bearings

2x Dual Ball Raced

Weight

55.6g / 1.6oz

Servo Arm

Futaba Compatible 25 Teeth

Wire Length

265mm / 10.4"

We can also supply

MaxLoc™ Connectors , Servo Extension Leads, Servo Accessories.



Part Number Description Price Quantity
4M-556DMG-087 1pcs of 4M-556DMG-087 Standard Sized Digital, Metal Geared, Dual Ball Raced Servo £15.74
4M-556DMG-087 5pcs of 4M-556DMG-087 Standard Sized Digital, Metal Geared, Dual Ball Raced Servo
SAVE £7.85
£70.85
(£14.17ea)
