EMAX ES3054 Mini 17g Digital Servo,
3.00Kg/3.50Kg Pull
From £15.83!

EMAX Mini 17g Digital Servo

EMAX ES3054

All Servos come with a full set of arms and accessories

Emax ES3054 Mini 17g Digital Servo

Specification
Operating Voltage Range	4.8 ~ 6.0VDC
Motor	Standard Motor
4.8V Operating Torque/Speed	3.00Kg.cm/0.15sec/60°
6.0V Operating Torque/Speed	3.50Kg.cm/0.13sec/60°

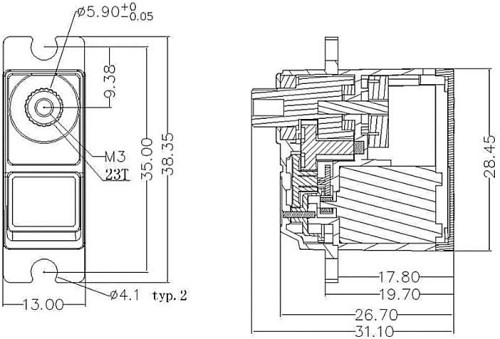

Dimensions	28.4mm x 13mm x 31.1mm
Gears	Metal
Bearings	Ball Raced
Weight	17g / 0.599oz

We can also supply

MaxLoc™ Connectors , Servo Extension Leads, Servo Accessories.
