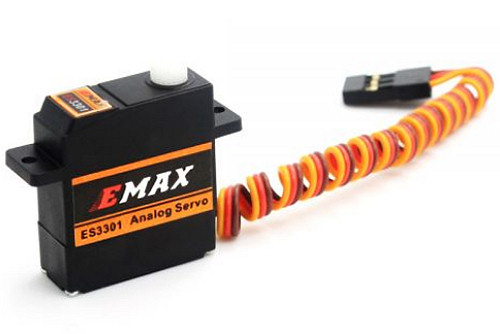

EMAX ES3301 Micro - Slim 10.6g Analog Servo,
2.0Kg/2.20Kg Pull
From £7.91!

EMAX Micro - Slim 10.6g Analog Servo

EMAX ES3301

All Servos come with a full set of arms and accessories

Emax ES3301 Micro - Slim 10.6g Analog Servo

Specification
Operating Voltage Range	4.8 ~ 6.0VDC
Motor	Standard Motor
4.8V Operating Torque/Speed	2.0Kg.cm/0.12sec/60°
6.0V Operating Torque/Speed	2.2Kg.cm/0.10sec/60°

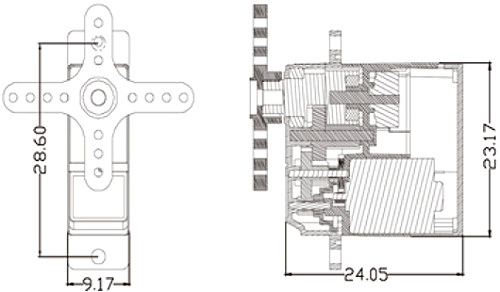

Dimensions	23.17mm x 9.17mm x 24.05mm
Gears	Plastic
Bearings	Dual Ball Raced
Weight	10.6g / 0.374oz

We can also supply

MaxLoc™ Connectors , Servo Extension Leads, Servo Accessories.
