Bit Secure ShoppingEMAX ES9052MD Sub Micro 5.5g |
||||||||||||||||||||||||||
|
All Servos come with a full set of arms and accessories

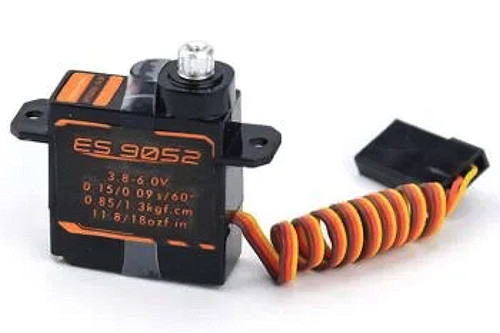

EMAX ES9052MD Sub Micro 5.5g Coreless Digital Servo
|
||||||||||||||||||||||||||
Specification |
|
Operating Voltage Range |
3.8 ~ 6.0VDC |
Motor |
Coreless Motor |
| 5.0V Operating Torque/Speed |
1.1Kg.cm/0.11Sec/60° |
|
6.0V Operating Torque/Speed |
1.3Kg.cm/0.09Sec/60° |
Dimensions |
19.9mm x 8.8mm x 23.1.mm |
Gears |
Metal |
Weight |
Approx. 5.5g / 0.194oz |
Idle Current |
2.2mA |
Stalled Current |
0.6A |
Splines |
15 Teeth |
Wire Length |
180mm +/- 8mm JR |
Operating Temperature |
-10°C to +50°C |
We can also supply
MaxLoc™ Connectors , Servo Extension Leads, Servo Accessories.
