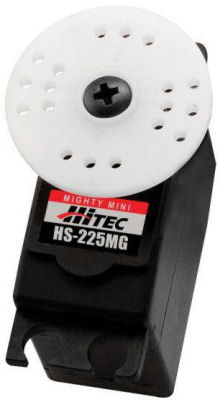

HiTEC HS-225MG Mini-Standard 31.0g
Analog Servo, 3.9Kg Pull
From £29.69!

4-Max Mini-Standard 31.0g Analog Servo

HiTEC HS-225MG

All Servos come with a full set of arms and accessories

HiTEC HS-225MG Mini-Standard 31.0g Analog Servo

Specification
Operating Voltage Range	4.8 ~ 6VDC
Motor	3 Pole Metal Brush Ferrite
4.8V Operating Torque/Speed	3.9Kg.cm/0.14sec/60°
6.0V Operating Torque/Speed	4.8Kg.cm/0.11sec/60°
Dimensions	32.4mm x 16.8mm x 31.0mm
Gears	Metal
Bearing	Top Ball Bearing
Weight	31.0g / 0.95oz
No Load Operating Current Draw	300 mAh
Stall Current Draw	1200 mAh

We can also supply

MaxLoc™ Connectors , Servo Extension Leads, Servo Accessories.
