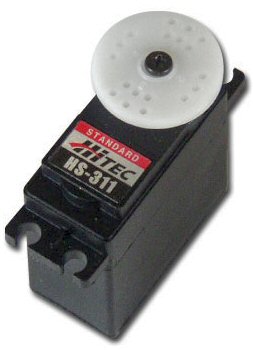

HiTEC HS-311 Standard 35.0g Analog Servo,
3.00Kg Pull
From £12.40!

4-Max Standard 35.0g Analog Servo

HiTEC HS-311

All Servos come with a full set of arms and accessories

HiTEC HS-311 Standard 35.0g Analog Servo

Specification
Operating Voltage Range	4.8 ~ 6VDC
Motor	3 Pole Metal Brush Ferrite
4.8V Operating Torque/Speed	3.00Kg.cm/0.19sec/60°
6.0V Operating Torque/Speed	3.50Kg.cm/0.15sec/60°

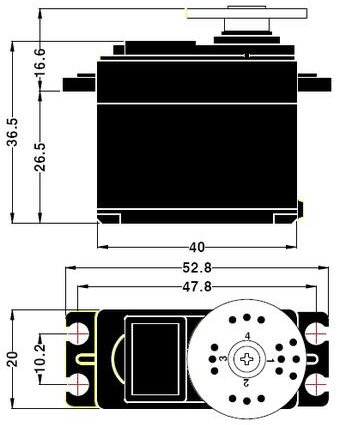

Dimensions	40.0mm x 20.0mm x 36.5mm
Gears	Nylon
Bearing	Plain
Weight	35.0g / 1.23oz
No Load Operating Current Draw	180 mAh
Stall Current Draw	800 mAh

We can also supply

MaxLoc™ Connectors , Servo Extension Leads, Servo Accessories.
