HiTEC HS-5085MG Mini 21.9g Digital Servo,
3.6Kg/4.3Kg Pull
From £28.35!

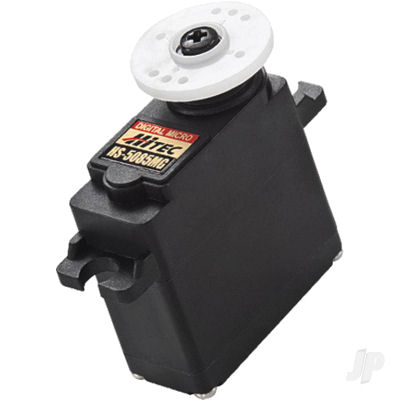

HiTEC HS-5085MG 21.9g Digital Ball Raced Servo

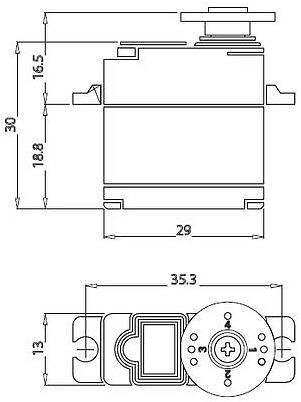

HiTEC HS-5085MG Dimensions

All Servos come with a full set of arms and accessories

Share on your Facebook Page

HiTEC HS-5085MG Mini 21.9g Digital Servo


Operating Voltage Range

4.8 ~ 6VDC


3 Pole Metal Brush Ferrite

4.8V Operating Torque/Speed°

6.0V Operating Torque/Speed°


29.0mm x 13.0mm x 30.0mm




Top Ball Bearing


21.9g / 0.772oz

No Load Operating Current Draw

290 mAh

Stall Current Draw

2150 mAh

We can also supply

MaxLoc™ Connectors , Servo Extension Leads, Servo Accessories.


Part Number Description Price Quantity
HS-5085MG 1pcs of HS-5085MG Mini Digital Servo £28.35
