HiTEC HS-5245MG Mini 32.0g Digital Servo,
4.4Kg/5.5Kg Pull
From £37.79!

4-Max Mini 32.0g Digital Servo

HiTEC HS-5245MG

All Servos come with a full set of arms and accessories

HiTEC HS-5245MG Mini 32.0g Digital Servo

Specification
Operating Voltage Range	4.8 ~ 6VDC
Motor	3 Pole Metal Brush Ferrite
4.8V Operating Torque/Speed	4.4Kg.cm/0.15sec/60°
6.0V Operating Torque/Speed	5.5Kg.cm/0.12sec/60°

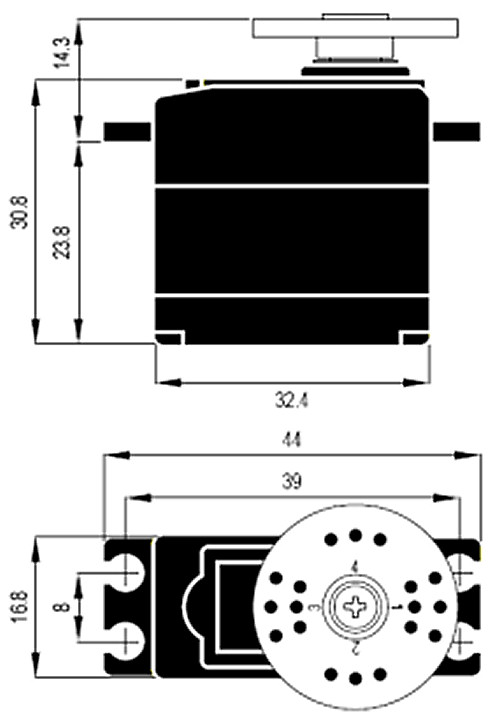

Dimensions	32.4mm x 16.8mm x 30.8mm
Gears	Metal
Bearing	Dual Ball Bearing
Weight	32.0g / 1.128oz
No Load Operating Current Draw	300 mAh
Stall Current Draw	1200 mAh

We can also supply

MaxLoc™ Connectors , Servo Extension Leads, Servo Accessories.
