HiTEC HS-55 Micro 8.0g Analog Servo,
1.10Kg Pull
From £13.46!

4-Max Micro 8.0g Analog Servo

HiTEC HS-55

All Servos come with a full set of arms and accessories

HiTEC HS-55 Micro 8.0g Analog Servo

Specification
Operating Voltage Range	4.0 ~ 6VDC
Motor	Standard Motor
4.8V Operating Torque/Speed	1.10Kg.cm/0.17sec/60°
6.0V Operating Torque/Speed	1.30Kg.cm/0.14sec/60°

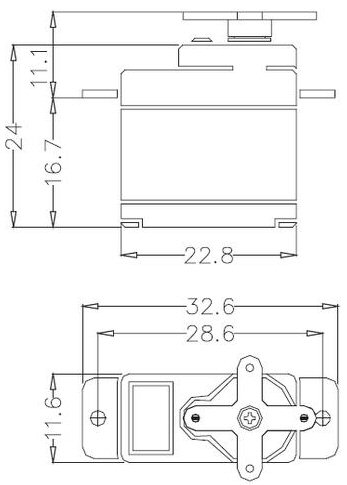

Dimensions	23mm x 12mm x 24mm
Gears	High Torque Plastic
Weight	8.0g / 0.282oz
Servo Arm	TBA
Wire Length	260mm

We can also supply

MaxLoc™ Connectors , Servo Extension Leads, Servo Accessories.
