HiTEC HS-85MG Micro 21.9g Analog Servo,
3.00Kg Pull
From £29.49!

4-Max Micro 21.9g Analog Servo

HiTEC HS-85MG

All Servos come with a full set of arms and accessories

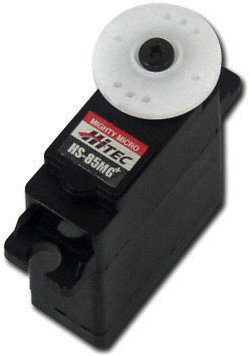

HiTEC HS-85MG Micro 21.9g Analog Servo

Specification
Operating Voltage Range	4.8 ~ 6VDC
Motor	3 Pole Metal Brush Ferrite
4.8V Operating Torque/Speed	3.00Kg.cm/0.16sec/60°
6.0V Operating Torque/Speed	3.50Kg.cm/0.14sec/60°

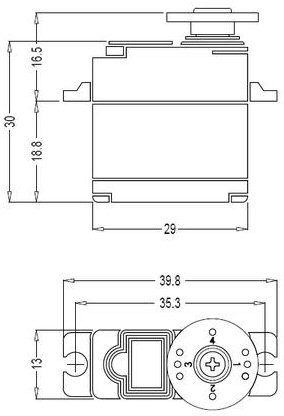

Dimensions	29.0mm x 13.0mm x 30.0mm
Gears	Metal
Bearing	Top Ball Bearing
Weight	21.9g / 0.772oz
No Load Operating Current Draw	240 mAh
Stall Current Draw	1200 mAh

We can also supply

MaxLoc™ Connectors , Servo Extension Leads, Servo Accessories.
