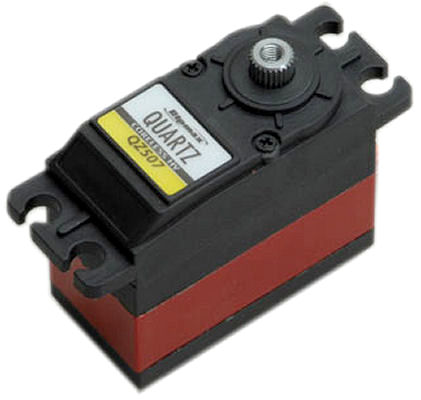

Ripmax Quartz QZ507 59.3g Coreless HV
Standard Sized Digital Metal Geared
Ball Raced Servo, 8.75Kg/11.25Kg Pull
From £34.99!

4-Max 59.3g Coreless HV Standard Sized Digital Metal Geared Ball Raced Servo

All Servos come with a full set of arms and accessories

4-Max 8.75Kg/11.25Kg Coreless HV Standard Sized Digital Metal Geared Ball Raced Servo

Specification
Operating Voltage Range	4.8 ~ 6.0VDC
Motor	Coreless High Voltage
6.0V Operating Torque/Speed	8.75Kg.cm/0.095sec/60°
8.4V Operating Torque/Speed	11.25Kg.cm/0.072sec/60°
Dimensions	40.5mm x 20.2mm x 36.5mm
Gears	Aluminium w/TiCn + brass
Bearings	2x Ball Raced
Weight	59.3g / 1.6oz

We can also supply

MaxLoc™ Connectors , Servo Extension Leads, Servo Accessories.
